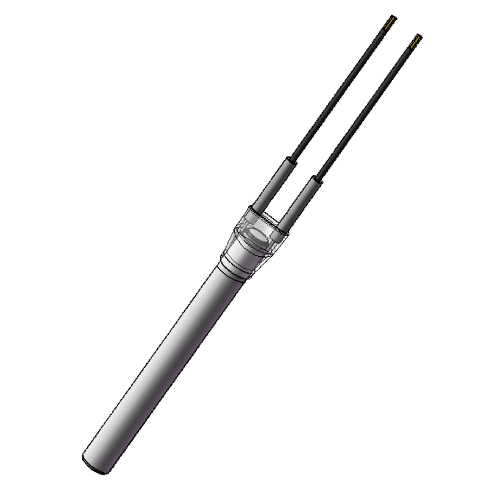

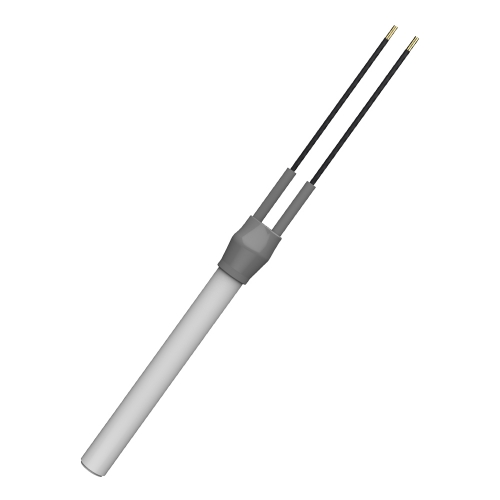

HF1303 Series Ceramic Igniter

Name: HF1303 Series Ceramic Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1303 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1303 Series

The HF1303 Series ceramic heater igniter delivers reliable ignition with high purity alumina construction, rapid heating, and customizable flanges, optimized for industrial and residential thermal systems needing durable hot surface ignitor elements.

Ask for a Solution PDF Format

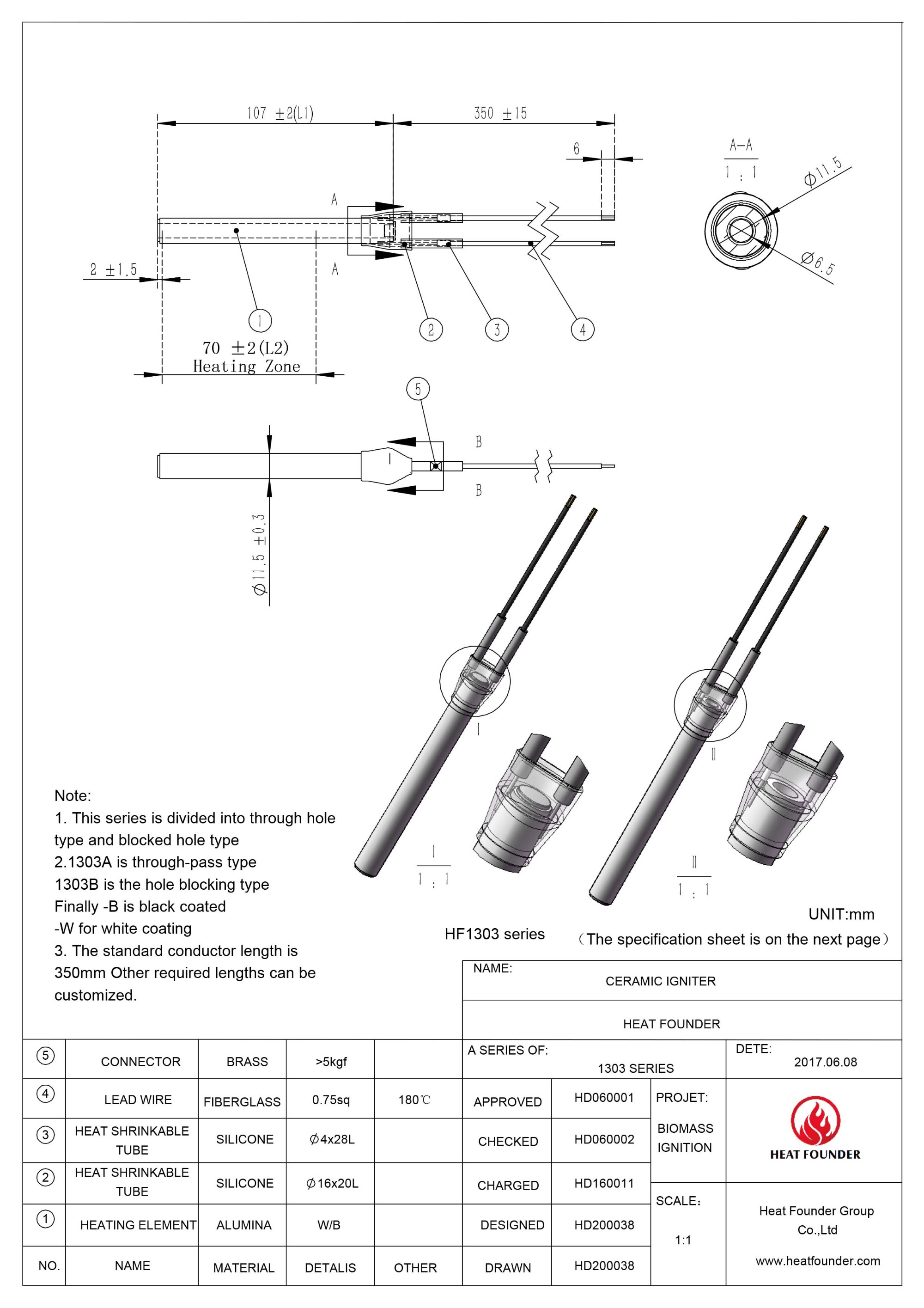

Description DRAWING

Functional Role in Heating Systems for Industrial and Residential Users
The HF1303 Series functions as a dedicated hot surface ignitor designed to reliably initiate combustion in biomass boilers, pellet burners, and gas-fired appliances. Target users include system integrators, engineers, and manufacturers specializing in residential and industrial heating equipment. By providing consistent ignition capability for fuels such as gas and oil, this product supports optimal system startup and operational safety. Its role extends to serving as an ignitor replacement component in existing systems requiring dependable, precision ignition performance. The product’s adaptability ensures compatibility across multiple heating platforms, enhancing system engineering flexibility using high-performance ceramic heater elements.

Technical Specifications Defining Durability and Thermal Efficiency
Constructed from 96% alumina ceramic, the HF1303 presents superior thermal stability and mechanical durability essential for demanding ignition applications. Operable at 120V or 230V, with power ratings of 260W to 300W, it achieves ignition temperatures between 30°C to 1050°C within 40 to 60 seconds. The ignitor’s configurable flange materials including ceramic, stainless steel, or copper optimize thermal conduction and mechanical mounting. Compliance with SGS, ISO9001, and additional international certifications ensures product quality and safety. Its dimensions and lead times are well-defined for integration into engineered solutions requiring precise ceramic heater element specifications and dependable hot surface ignitor function.

Industry Applications Highlighting Reliability in Combustion Systems
This silicon nitride igniter variant is suitable for pellet stoves, gas burners, and industrial heating processes requiring consistent ignition sources. Its robust ceramic heater construction is particularly valuable in the energy, agricultural, and commercial heating sectors, supporting clean and efficient combustion. The HF1303 series aids compliance with environmental and safety standards, enhancing system reliability in biomass, oil, and gas fuel systems. Its design enables seamless integration into existing control architectures and maintenance workflows where ignitor replacement with superior ceramic materials improves operational longevity and reduces downtime.

Product Advantages

Structural and Design Benefits Supporting System Integration
The HF1303 Series integrates a high-purity alumina ceramic core with customizable flange options, allowing engineers to adapt the ignitor physically and thermally to their system requirements. The modular design supports various mounting configurations, while the selected flange materials—ceramic, stainless steel, or copper—enhance mechanical stability and thermal transfer tailored to specific applications. The hot surface ignitor’s standardized dimensions simplify replacement parts logistics. Compliance with multiple quality certifications ensures that each ignitor meets stringent manufacturing standards, facilitating reliable integration within complex heating system assemblies. This product’s design philosophy prioritizes versatility and durability in ceramic heater elements for optimized engineering deployment.

Operational Performance and User Value in Thermal Applications
Operationally, the HF1303 Series offers rapid ignition within 40 to 60 seconds, promoting efficient system startups and energy use optimization. The ignitor’s temperature tolerance up to 1050°C supports various combustion conditions without degradation. Its stable thermal output delivers consistent ignition that reduces fuel wastage and enhances operational safety. The comprehensive testing and certification protocols provide end users with assurance of consistent quality and performance reliability. Easy flange customization and compatibility with existing system architecture reduce installation time and maintenance complexity, delivering overall cost savings and improved uptime in commercial and industrial heating solutions where ceramic heater elements and ignitor replacement are critical.

Name	Ceramic Igniter
Model	HF1303 Series
Material	96% alumina
H.S. Code	8516800000
Voltage	120V 230V
Power	260W 300W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	30~1050 °C/86~1922℉
Ignition Time	40-60 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)
HF1303A01-W	230	300	11.5	107	70
HF1303B01-W	230	300	11.5	107	70
HF1303A01-B	230	300	11.5	107	70
HF1303B01-B	230	300	11.5	107	70
HF1303A02-W	120	260	11.5	107	70
HF1303B02-W	120	260	11.5	107	70
HF1303A02-B	120	260	11.5	107	70
HF1303B02-B	120	260	11.5	107	70

Use Scenarios

Ignition Solution in Commercial Pellet and Biomass Heating Systems
In the biomass energy industry, the HF1303 Series acts as a critical hot surface ignitor for pellet stoves and biomass boilers. Operating in environments requiring clean, efficient combustion, this ceramic heater element withstands high temperature cycles and provides reliable spark ignition. Its thermal and physical properties ensure consistent ignition performance in fuel particle burning processes. Designed to meet rigorous emission and safety standards, the ignitor supports integration with automated control systems for uninterrupted operation, thus optimizing energy output and compliance within commercial heating infrastructure. Its role as an ignitor replacement is vital for extending equipment lifespan and minimizing operational downtime.

Reliable Ignition Component for Gas Burners and Outdoor Cooking Appliances
For gas burners, BBQ grills, and fireplace systems, the HF1303 Series serves as a dependable hot surface ignitor facilitating precise ignition control. Targeting commercial and residential outdoor cooking and heating appliances, this silicon nitride igniter provides fast heat generation ensuring user safety and convenience. Its robust alumina ceramic construction is resistant to thermal shock and environmental exposure, maintaining performance over lifetime cycles. The product’s compatibility with various flange materials enables secure integration within compact burner assemblies. Compliance with global safety certifications further assures its suitability for applications demanding certified, durable ceramic heater elements as part of standard installation or ignitor replacement maintenance programs.

FAQ

What materials are used in the HF1303 Series Ceramic Igniter?
Our HF1303 Series uses 96% alumina ceramic for the igniter tube, with flange options in ceramic, stainless steel, or copper. This combination offers excellent thermal stability and durability for various heating applications, including as a reliable ceramic heater element in industrial and residential systems.

Can I customize the flange material and power rating for the igniter?
Yes, we offer customization for both the flange material—ceramic, stainless steel, or copper—and power ratings of 260W or 300W. This adaptability helps meet specific requirements for applications such as pellet stoves or gas burners needing tailored hot surface ignitor solutions.

How should the HF1303 Series Ceramic Igniter be installed and maintained?
We recommend installing the igniter according to your heating appliance’s technical guidelines, ensuring secure flange attachment and proper electrical connection at 120V or 230V. For longevity, avoid exposure to excessive mechanical stress and replace the igniter if ignition time extends beyond 60 seconds, maintaining your system’s efficiency with our reliable ignitor replacement parts.

What is the typical delivery time, and do you support bulk orders?
Samples are available within 5 working days, with mass production lead times around 12 working days. We support bulk orders for industrial clients, ensuring quality control compliant with SGS, ISO9001, and other certifications. Contact us to discuss your project needs and receive a tailored production plan.
