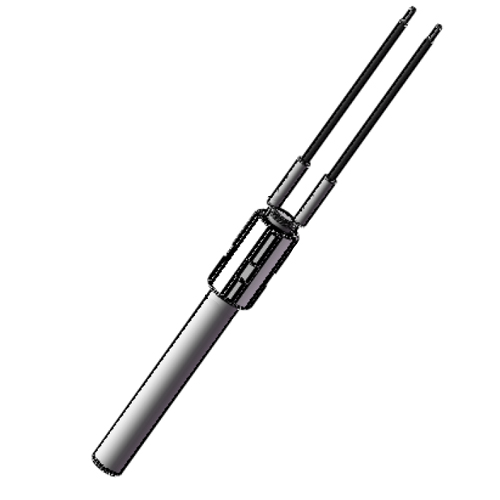

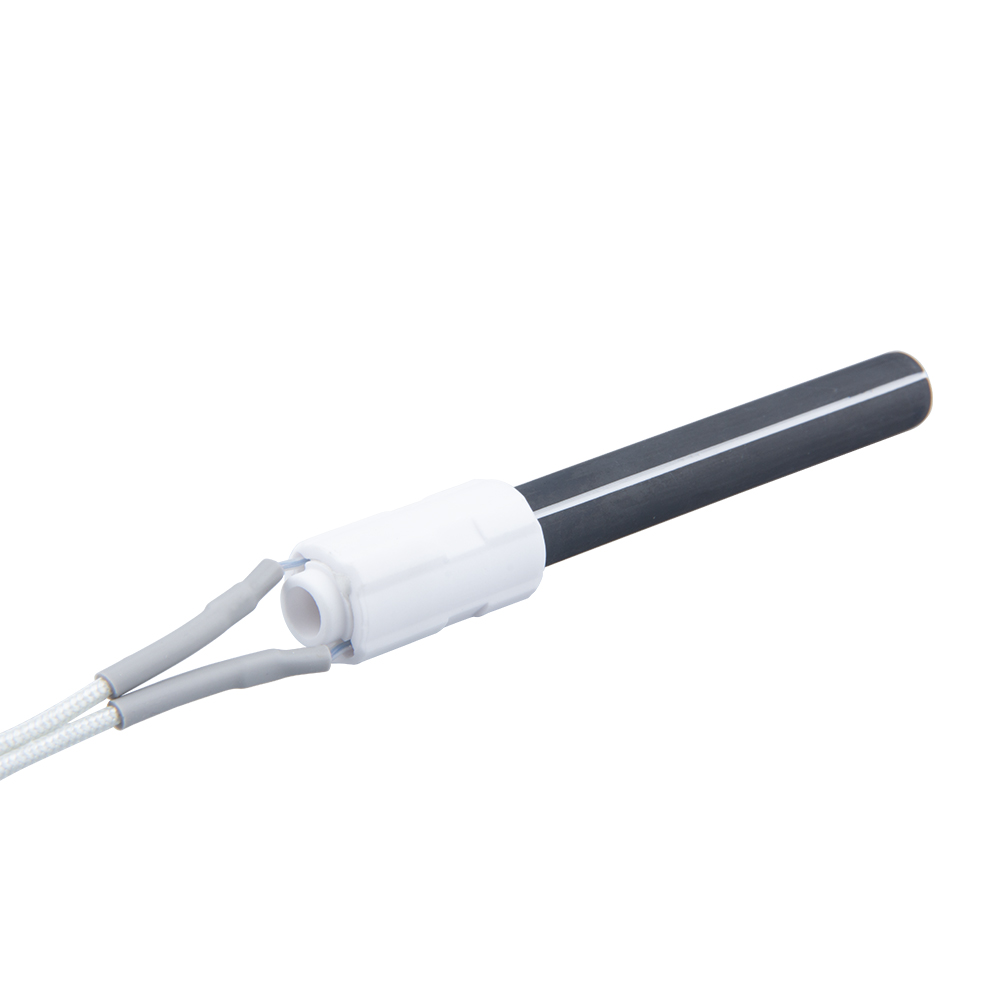

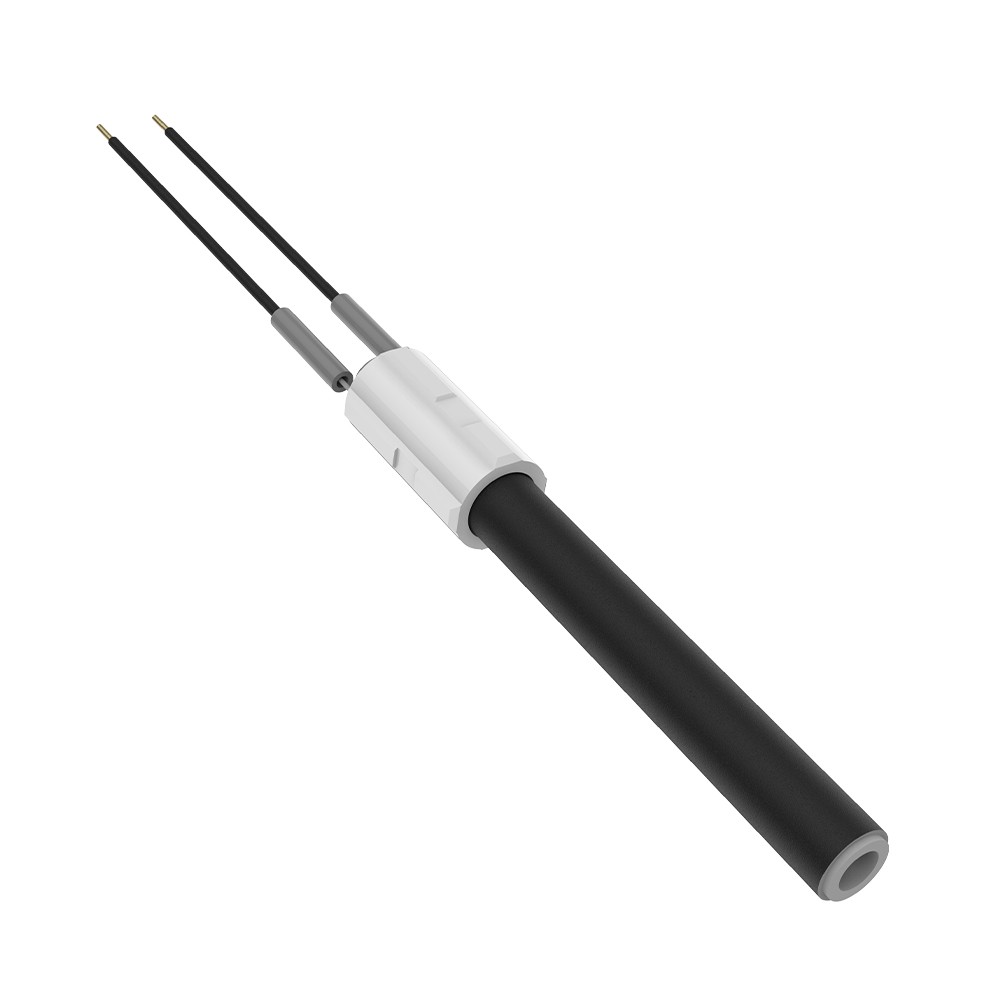

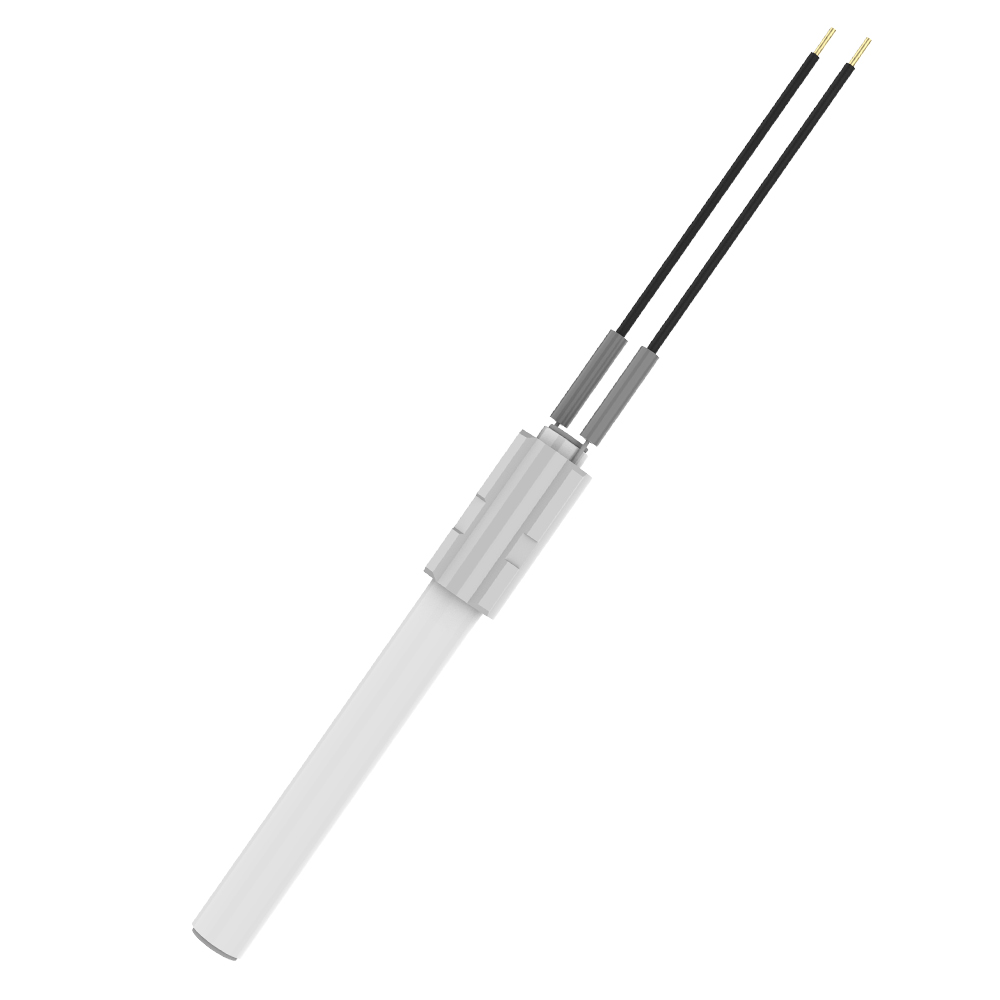

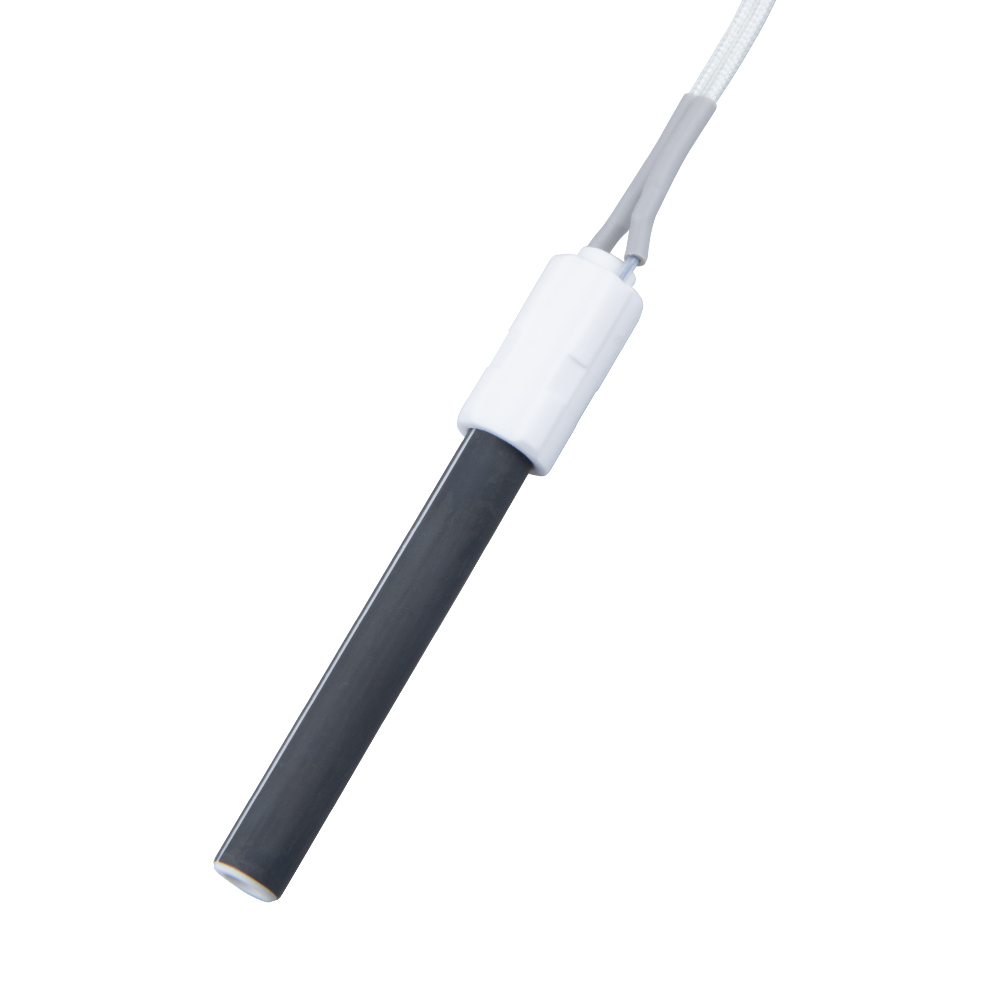

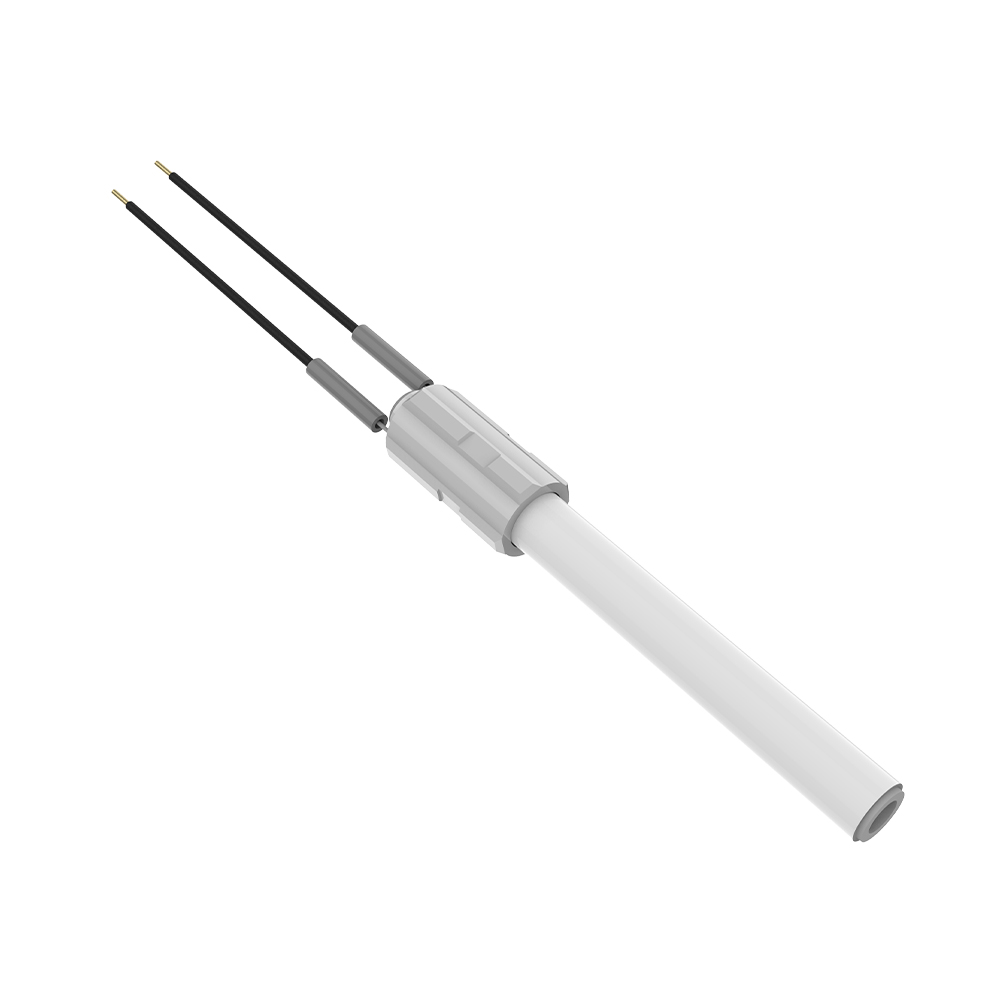

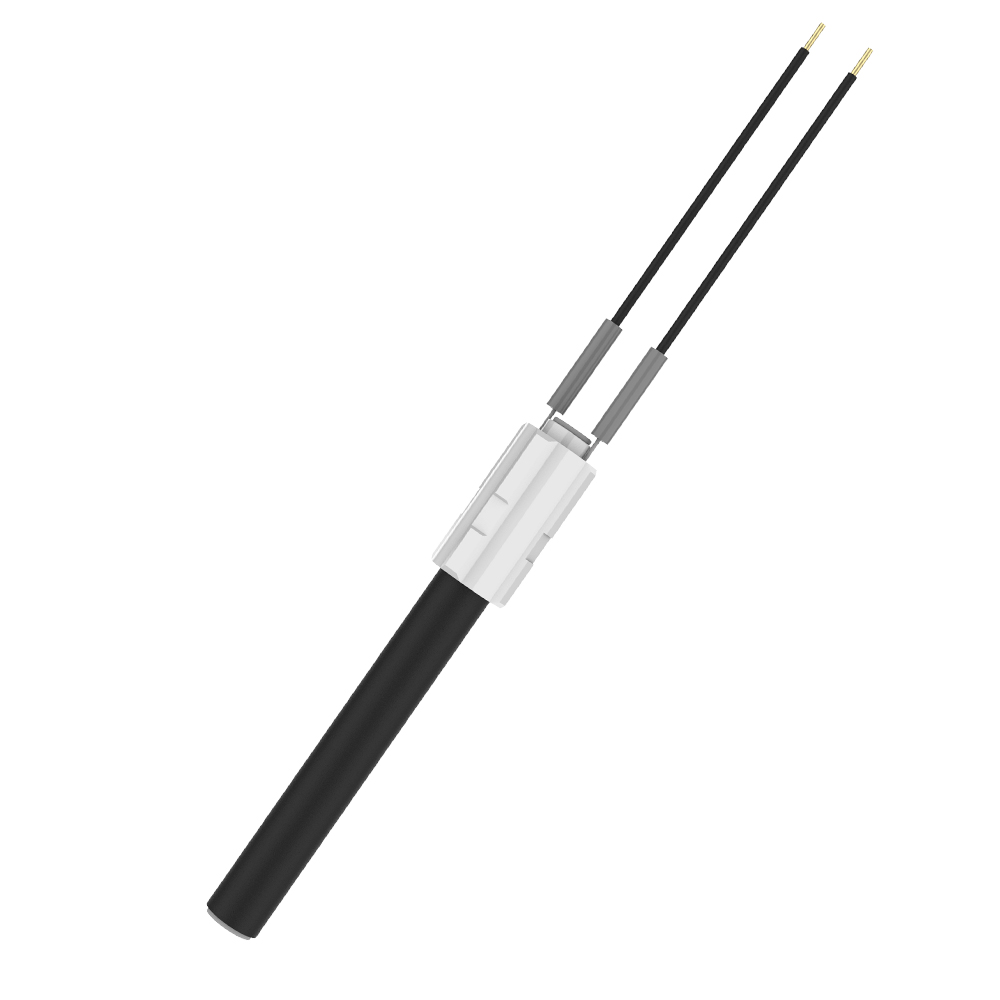

HF1302 Series Ceramic Igniter

Name: HF1302 Series Ceramic Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1302 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1302 Series

The HF1302 Series delivers a high-reliability hot surface ignitor solution featuring 96% alumina ceramic construction, customizable flanges, and operation up to 1050°C, ideal for precise ignitor replacement in heating systems.

Ask for a Solution PDF Format

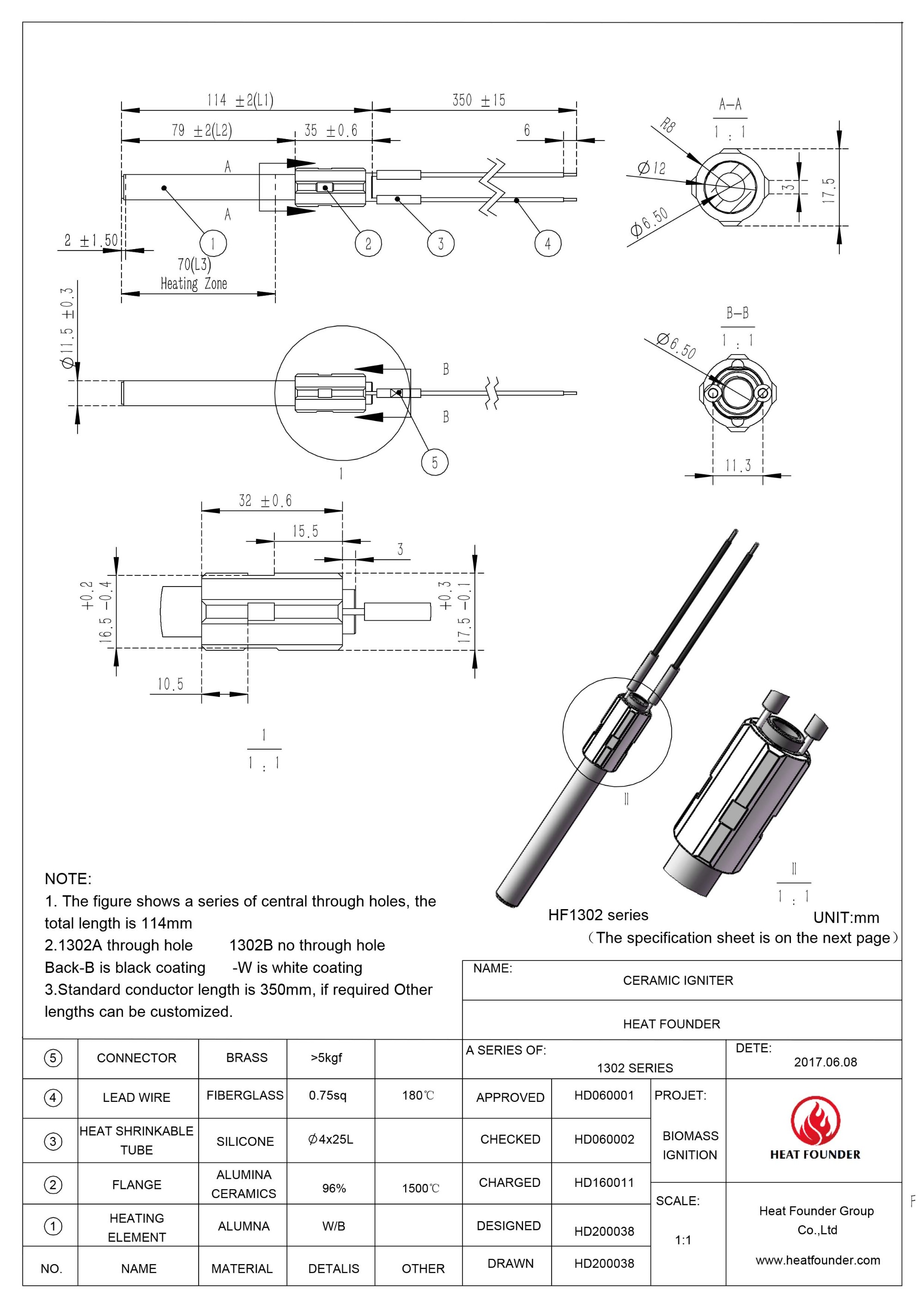

Description DRAWING

Optimized Functionality for Industrial Heating Systems
The HF1302 Series ceramic igniter is engineered for integration into a broad range of heating equipment requiring stable ignition solutions. Primarily targeting OEMs and system integrators in biomass boilers, gas burners, and pellet stoves, this hot surface ignitor provides dependable ignition of fuel sources such as gas, oil, or pellets. Its configuration supports retrofit and new installations, facilitating effective ignitor replacement for enhanced operational continuity. By addressing diverse thermal ignition needs, the product supports industrial clients prioritizing system uptime and fuel efficiency.

Precision Manufacturing with High-Grade Ceramic and Electrical Ratings
Constructed from 96% alumina ceramic, the HF1302 is designed to tolerate extreme thermal stress while maintaining electrical stability. Rated for 120V or 230V input and available with 260W or 300W power options, it operates reliably across a temperature range of 30°C to 1050°C. Ignition occurs within 40 to 60 seconds, ensuring rapid heating cycles. The igniter includes adaptable flange materials — ceramic, stainless steel, or copper — to match installation environments. Strict adherence to SGS, ISO9001, and Intertek standards guarantees consistent quality across production batches.

Broad Applicability in Heating and Energy Systems
This series is utilized in diverse sectors including residential and commercial heating, agricultural pellet systems, and industrial gas burning appliances. Its capability to deliver consistent ignition stabilizes burner performance and contributes to energy efficiency gains. Compliance with certifications such as BSCI, ISO9000/1400, and TUV empowers manufacturers to meet rigorous environmental and safety regulations. The HF1302 supports the transitioning energy landscape by reinforcing reliable ignition in modern heating and fuel cell applications.

Product Advantages

Robust Structural Design and Material Versatility

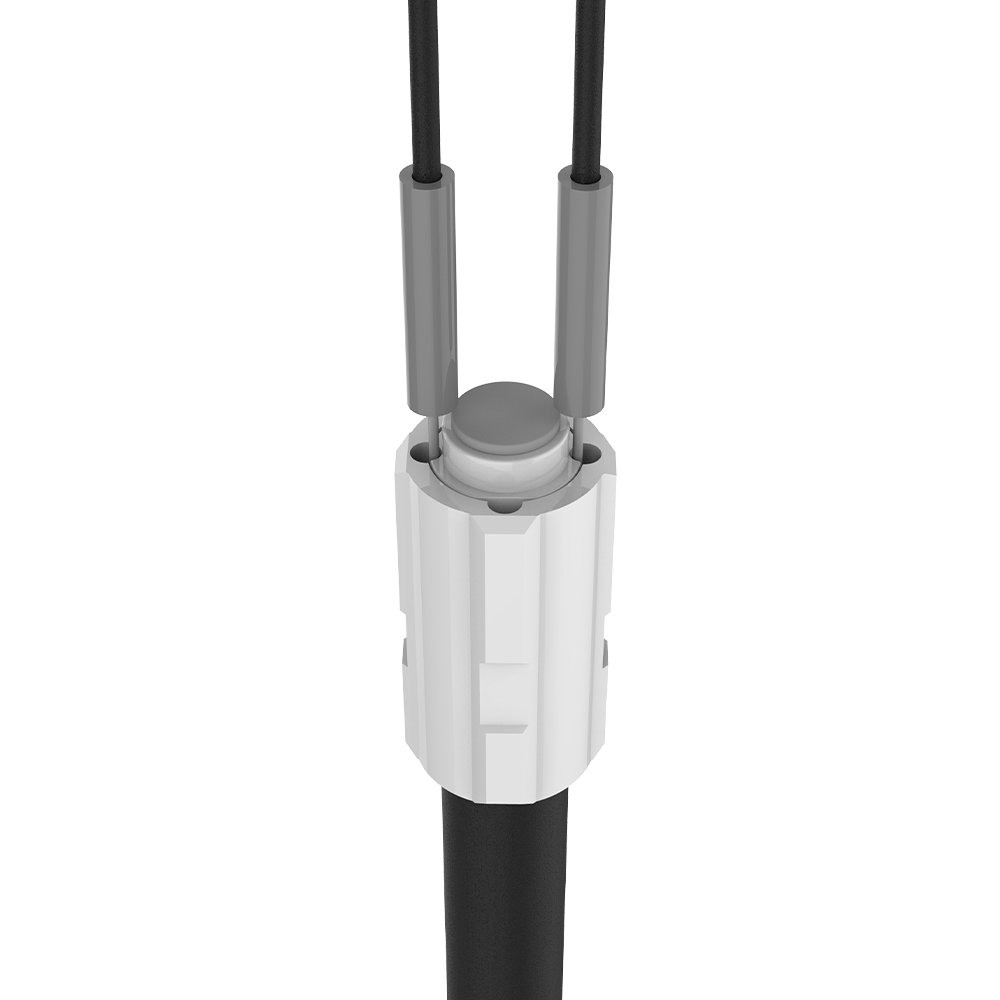

The HF1302 Series features robust ceramic construction capable of high thermal stability, enhanced by customizable flange materials including stainless steel and copper to optimize mechanical integration. Its modular design facilitates straightforward retrofit ignitor replacement across various heating platforms. The ceramic heater elements exhibit resistance to oxidation and thermal shock, extending service life under demanding operational conditions. This adaptability reduces downtime and installation complexity in multi-application environments.

Reliable Performance and Operational Efficiency
Offering rapid ignition within 40 to 60 seconds with a stable temperature profile up to 1050°C, the HF1302 ensures optimal ignition reliability. Its high power densities support quick heat-up cycles while maintaining durability, reducing energy consumption over lifecycle use. The igniter's consistent output provides stable startup sequences critical for system performance and safety. Easy integration with existing controls and proven quality compliance reinforce its value proposition for engineering teams prioritizing operational efficiency in heating systems.

Name	Ceramic Igniter
Model	HF1302 Series
Material	96% alumina
H.S. Code	8516800000
Voltage	120V 230V
Power	260W 300W

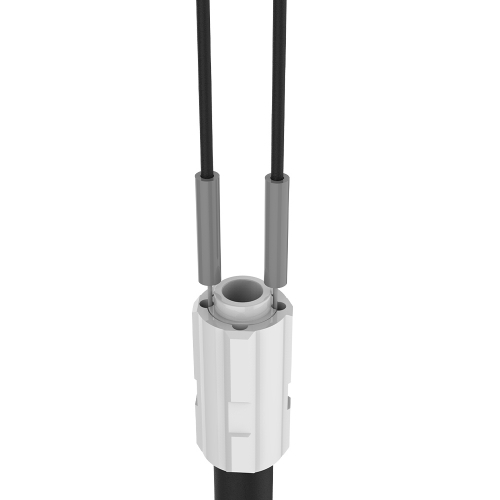

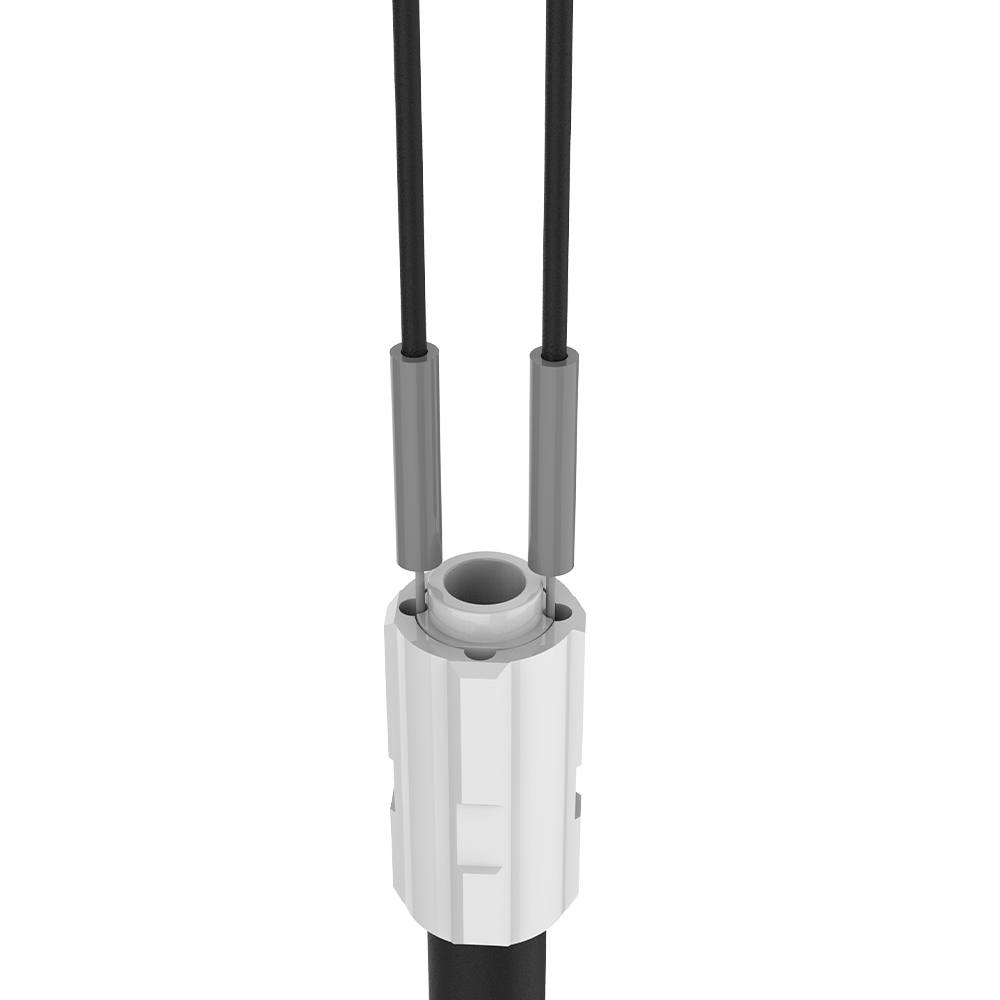

Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	30~1050 °C/86~1922℉
Ignition Time	40-60 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler

Model Number	Voltage(V)	Rating power(W)	OD.tube(mm)	Total length L1(MM)	Length under flange Width L2(MM)	Length of Hot Zone L3(MM)	Max.OD.flange(MM)
HF1302A01-W	230	300	11.5	114	79	70	17.7
HF1302B01-W	230	300	11.5	114	79	70	17.7
HF1302A01-B	230	300	11.5	114	79	70	17.7
HF1302B01-B	230	300	11.5	114	79	70	17.7
HF1302A02-W	120	260	11.5	114	79	70	17.7
HF1302B02-W	120	260	11.5	114	79	70	17.7
HF1302A02-B	120	260	11.5	114	79	70	17.7
HF1302B02-B	120	260	11.5	114	79	70	17.7
HF1302A03-W	230	260	11.5	114	79	70	17.7
HF1302B03-W	230	260	11.5	114	79	70	17.7
HF1302A03-B	230	260	11.5	114	79	70	17.7
HF1302B03-B	230	260	11.5	114	79	70	17.7

Use Scenarios

Thermal Ignition in Biomass Boilers and Pellet Stoves
In biomass and pellet-fired heating systems, the HF1302 acts as a critical hot surface ignitor to initiate combustion under variable fuel conditions. Its high temperature rating and quick ignition time improve startup reliability required in seasonal heating cycles. Compliance with global certifications ensures that installations meet stringent energy and safety standards. Seamless integration into control systems supports automated ignition sequences, minimizing manual intervention and optimizing fuel utilization rates in commercial and residential boiler operations.

Gas Burner Ignition for HVAC and Industrial Appliances
Within HVAC systems and industrial gas burners, the HF1302 ceramic igniter provides safe and rapid ignition of gaseous fuels. Its resistance to thermal cycling and robust ceramic heater elements endure harsh operating environments typical of these applications. By enabling controlled, repeatable ignition, it contributes to appliance longevity and reduces the risk of misfire or flame failure. Its configurable flange options facilitate retrofitting older equipment, supporting both preventative maintenance programs and equipment modernization efforts.

FAQ

What flange materials do you offer for the HF1302 Series Ceramic Igniter?
We provide flange customization using ceramic, stainless steel, copper, and other materials to meet your specific installation needs. This flexibility allows our hot surface ignitor to integrate seamlessly into diverse heating applications, ensuring reliable operation in your system.

Can you explain the typical ignition time and operating temperature of the HF1302 Series?
Our HF1302 Series igniter has an ignition time between 40 to 60 seconds and operates reliably from 30°C up to 1050°C (86°F to 1922°F). This ensures quick and consistent ignition suitable for applications like pellet stoves and gas burners requiring dependable thermal performance.

How do you ensure the quality and safety of your ceramic igniters?
We follow strict quality control under SGS, ISO9001, and Intertek standards. Our HF1302 Series holds multiple certifications, including BSCI, ISO9000/1400, BV, TUV, SGS, and FSC, guaranteeing compliance with international safety and quality benchmarks for trusted industrial use.

Do you provide support for installation or replacement of ceramic heater elements?
Yes, we assist customers with technical guidance on installing and replacing our ceramic heater elements and ignitor replacement parts. Our expertise ensures you achieve optimal performance and longevity from your heating equipment with professional support.
