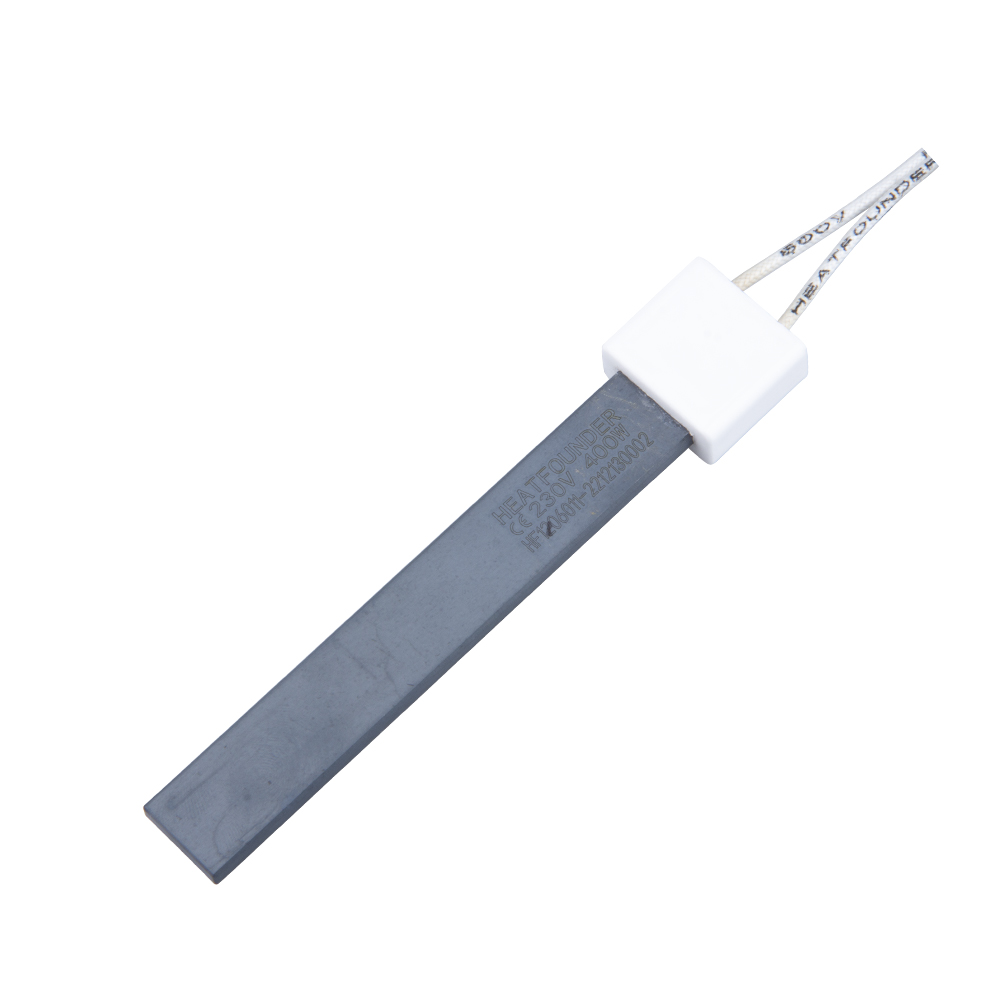

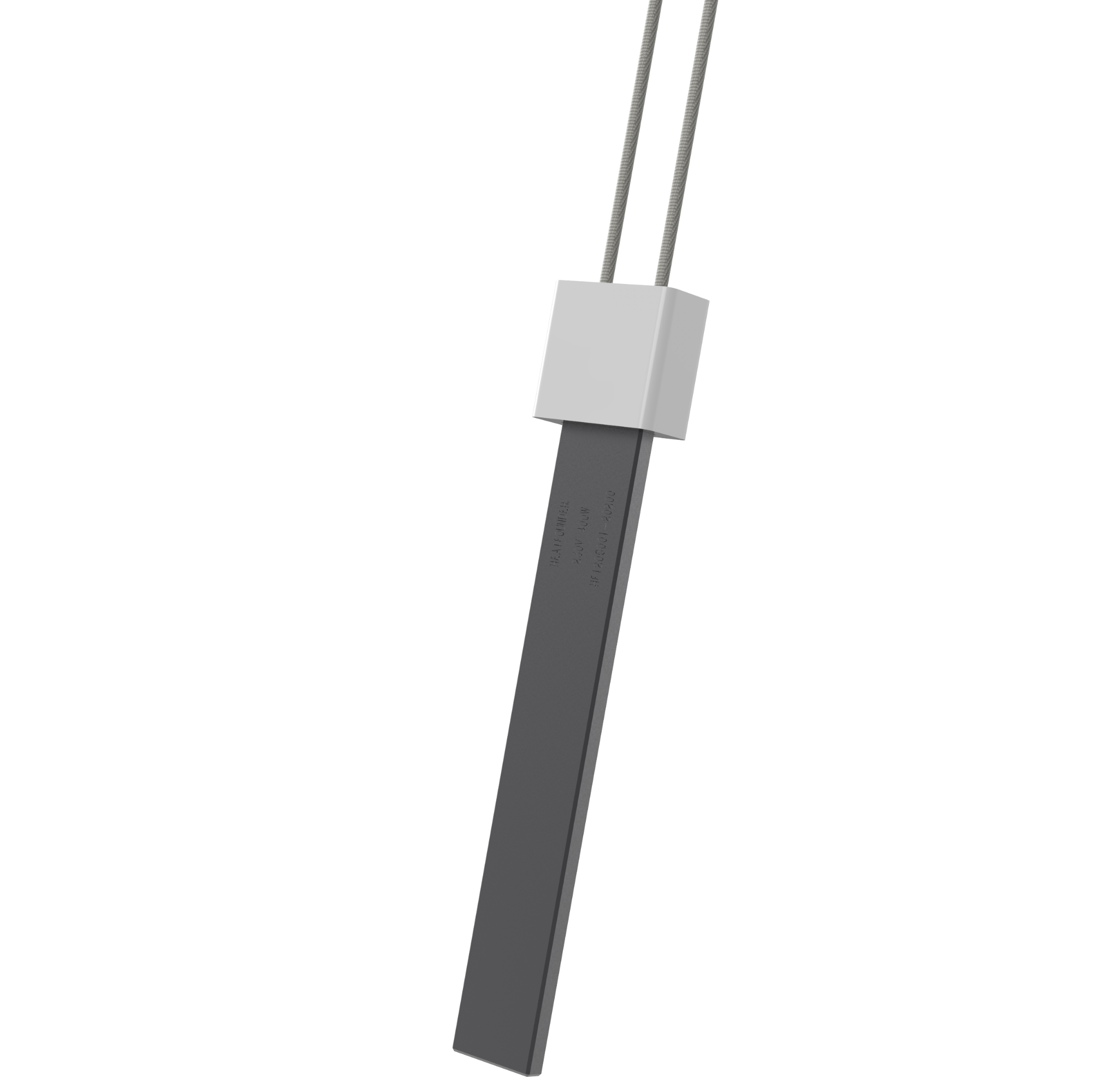

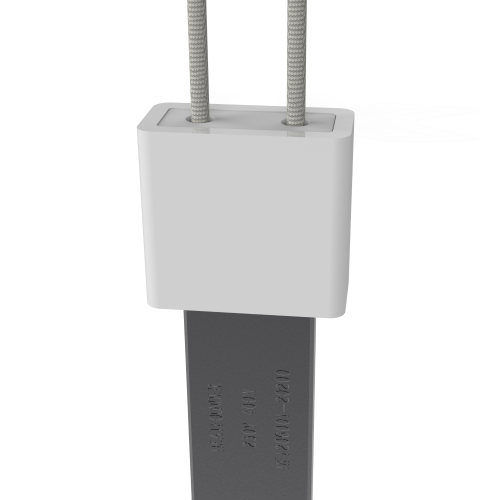

HF1206 Series Silicon Nitride Igniter

Name: HF1206 Series Silicon Nitride Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1206 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1206 Series

【90s Ignition Time & 100% Pit Boss Igniter Replacement】【Patented Aerospace Ignition Technology - Quick To Ignite & Durable, Safe To Use】【Stable Heating & Small Size Igniter】
if you need more technical information,please contact info@heatfounder.com.

Ask for a Solution PDF Format

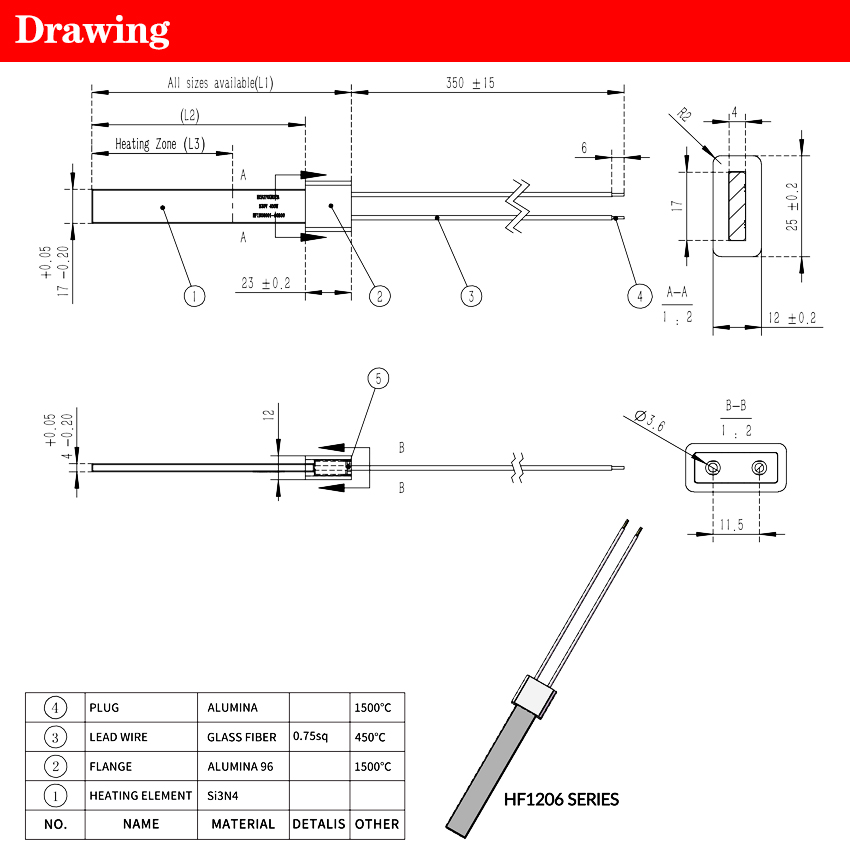

Description DRAWING

Specialized Ignition Component for Heating System Designers
This silicon nitride igniter is engineered for appliance developers and OEM teams designing high-efficiency ignition or heating modules requiring a compact hot water heater igniter with excellent thermal response. The dense ceramic structure embeds a conductive heating path that reaches operating temperature rapidly while maintaining mechanical stability under repeated thermal cycling. Its moisture-resistant body eliminates the failures commonly associated with metal or glass-fiber based igniters, making it suitable for enclosed combustion modules, hybrid heating systems, and instant-boil water assemblies. Because it delivers strong ignition performance with minimal thermal loss, the igniter supports engineered systems where reliability and predictable heat-up curves are essential. As a result, developers integrating gas-assist water heaters, pellet systems, or electronic boilers can benefit from a component that maintains stable output across long service intervals.

Stable Thermal Characteristics for Precision-Controlled Systems
OEMs selecting heating components for boilers, dispensers, or ignition-assisted liquid heaters require a ceramic heater offering consistent performance under varying load conditions. This igniter’s silicon nitride formulation provides uniform heat emission, minimizing hotspots that shorten lifespan or affect control-loop accuracy. Its electrical resistance remains steady under rapid temperature rises, enabling more accurate ignition timings and reduced misfire rates. Compared with older ceramic or metal-sheath igniters, this structure withstands oxidation, contamination, and moisture exposure, essential for systems handling mixed water quality or fluctuating humidity. Its mechanical rigidity also prevents micro-cracking during assembly, allowing stable placement in narrow combustion chambers or compact water-heating modules. The igniter is designed for engineering groups needing a heating element that supports long-term calibration stability and dependable thermal consistency.

Application Value in Water Heating and Ignition Modules
Product designers and maintenance teams gain practical value from this igniter as a reliable water heater element replacement, especially in systems where fast heating is required. Its thermal output supports instant-heat water modules, electric-to-gas hybrid heaters, and coordinated ignition-and-heating chambers. Because the igniter maintains a clean surface with minimal mineral adhesion, operation remains efficient even in regions with hard water. Its compatibility with ceramic mounting blocks, steel housings, and sealed combustion modules streamlines integration into existing assembly lines. The igniter’s rapid heat-up capability and durable structure help manufacturers reduce warranty claims, while service technicians benefit from predictable electrical characteristics that simplify field replacement and system recalibration.

Product Advantages

Reinforced Ceramic Structure Ensuring Long Service Durability
The igniter is built from a reinforced silicon nitride matrix engineered for demanding thermal cycles, giving it a long lifespan compared with conventional metal or fiber-based igniters. Its dense body protects the internal resistive circuit from oxidation and moisture, extending reliability even in systems exposed to varying water conditions. This is especially valuable for manufacturers seeking a stable ceramic heater for hot-water modules that must endure thousands of heating cycles. The monolithic body minimizes micro-cracks and prevents carbon buildup typically found in older ignition rods, lowering the likelihood of premature failure. These structural advantages reduce maintenance frequency and support consistent heating performance throughout the equipment’s operational life.

Simplified Integration Across Multiple Heating and Ignition Platforms
This igniter is designed to fit easily into a wide range of water-heating modules and ignition-assisted thermal systems. Its mounting geometry allows engineers to integrate it into compact chambers without redesigning existing housings, making it efficient for OEMs who produce several heater types in one product family. For teams upgrading older hardware, the igniter serves as a dependable water heater element replacement due to its stable electrical parameters and universal connection layout. Integration requires no complex modifications, and its robust terminals maintain good conductivity under vibration and thermal expansion. These features streamline assembly processes, improve product uniformity, and reduce installation errors during both production and field servicing.

Rapid Thermal Response for Accurate Heating and Ignition Control
Systems requiring fast, precisely timed ignition benefit from the igniter’s rapid heat-up rate, a major advantage over traditional coils. Its optimized internal resistance ensures predictable ignition timing for controlled combustion and hybrid water-heating systems. The igniter also serves effectively as a hot water heater element, offering reliable heat distribution without the uneven thermal output common in metal-sheath elements. For applications requiring frequent on-off cycling, the igniter provides stable thermal behavior, helping system controllers maintain consistent water temperatures and ignition reliability. This contributes to energy-efficient operation and enhances end-user experience by reducing delays during startup cycles.

Use Scenarios

For Appliance Engineers Developing Compact Heating Modules
Engineers building next-generation compact water-heating systems—such as countertop boiling units, hybrid electric-gas heaters, or small dispensers—benefit from the igniter’s stable thermal output and compact form. Its ability to function as a hot water heater element allows precise heating control in tight chambers. The ceramic structure supports repeated rapid heating cycles without performance drift, enabling consistent testing results during product development. Appliance R&D teams can integrate the igniter into early prototypes or production models without needing to redesign thermal housings.

For Manufacturers of Ignition-Assisted Water Heating Equipment
Equipment manufacturers producing gas-assist boilers, pellet ignition modules, electronic burner systems, or multi-stage heating appliances gain high operational reliability from this ceramic heater. The igniter reaches ignition-ready temperature quickly, ensuring smooth startup and stable flame establishment in combustion chambers. Its electrical resistance remains stable over time, giving system controllers consistent data for ignition timing and safety checks. Manufacturers handling large-volume OEM orders also benefit from predictable integration, as the igniter is compatible with both metal and composite mounting fixtures.

For Technical Service Teams Replacing Faulty Heating Elements
Maintenance providers working with residential hot-water appliances, point-of-use water heating modules, and commercial dispensers often require a robust water heater element replacement to restore consistent temperature output. This igniter’s moisture-resistant ceramic body ensures longevity even in hard-water regions prone to mineral accumulation. Its universal connector design and stable electrical behavior simplify field replacement, reducing installation time and minimizing service disruptions. The igniter’s ability to maintain performance under continuous cycling helps service technicians deliver reliable system upgrades for customers.

Name	Silicon Nitride Igniter
Model	HF1206 Series
Material	Silicon Nitride (Si3N4)
H.S. Code	8516800000
Color	black
Voltage	110V 230V
Power	100W 400W 450W 600W 750W 900W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	1100~1300 °C/2012~2372℉
Ignition Time	up to 1000°c in 10 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler
Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature:1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing

Model Number	Voltage(V)	Rating power(W)	Width(MM)	Total length Width(MM)	Length under flange(MM)	Length of Hot Zone(MM)	Max.OD.flange(MM)
HF1206001	110	100	17	52	29	15	23
HF1206002	230	400	17	95	72	58	23
HF1206003	230	600	17	115	92	76	23
HF1206004	230	900	17	115	92	76	23
HF1206005	230	400	17	128	105	84	23
HF1206006	230	600	17	128	105	84	23
HF1206007	230	600	17	135	112	98	23
HF1206008	230	900	17	135	112	98	23
HF1206009	230	450	17	138	115	94	23
HF1206010	230	750	17	138	115	94	23

FAQ

How does this igniter integrate into compact water-heating or ignition modules?
It mounts directly into standard ceramic blocks or metal housings, and its electrical characteristics match common ignition-control boards, simplifying OEM integration.

What level of technical support is available during system development?
Support includes electrical matching guidance, mounting recommendations, and assistance during prototype testing to ensure the igniter performs reliably within the target system.

Can this igniter replace older metal or glass-fiber heating elements?
Yes. It is suitable as a water heater element replacement thanks to its stable resistance, faster heat-up behavior, and ceramic durability under repeated cycling.

What is the expected lead time for large production runs?
Lead time varies by volume and customization requirements, but standard orders follow consistent production schedules suitable for appliance manufacturers and heating-equipment OEMs.

Does the igniter store or transmit any operational data?
No. It contains no data-logging electronics and does not interface with monitoring systems, ensuring compatibility with simple control boards without privacy or data concerns.
