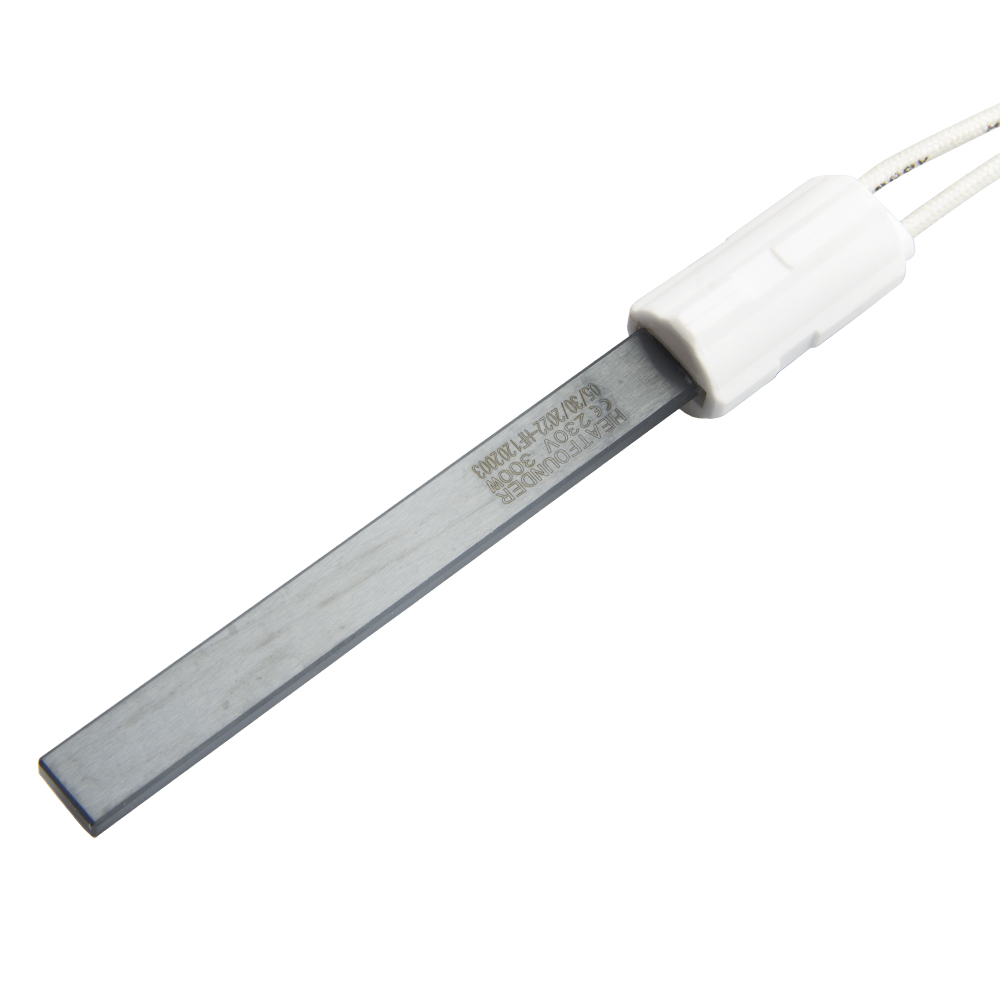

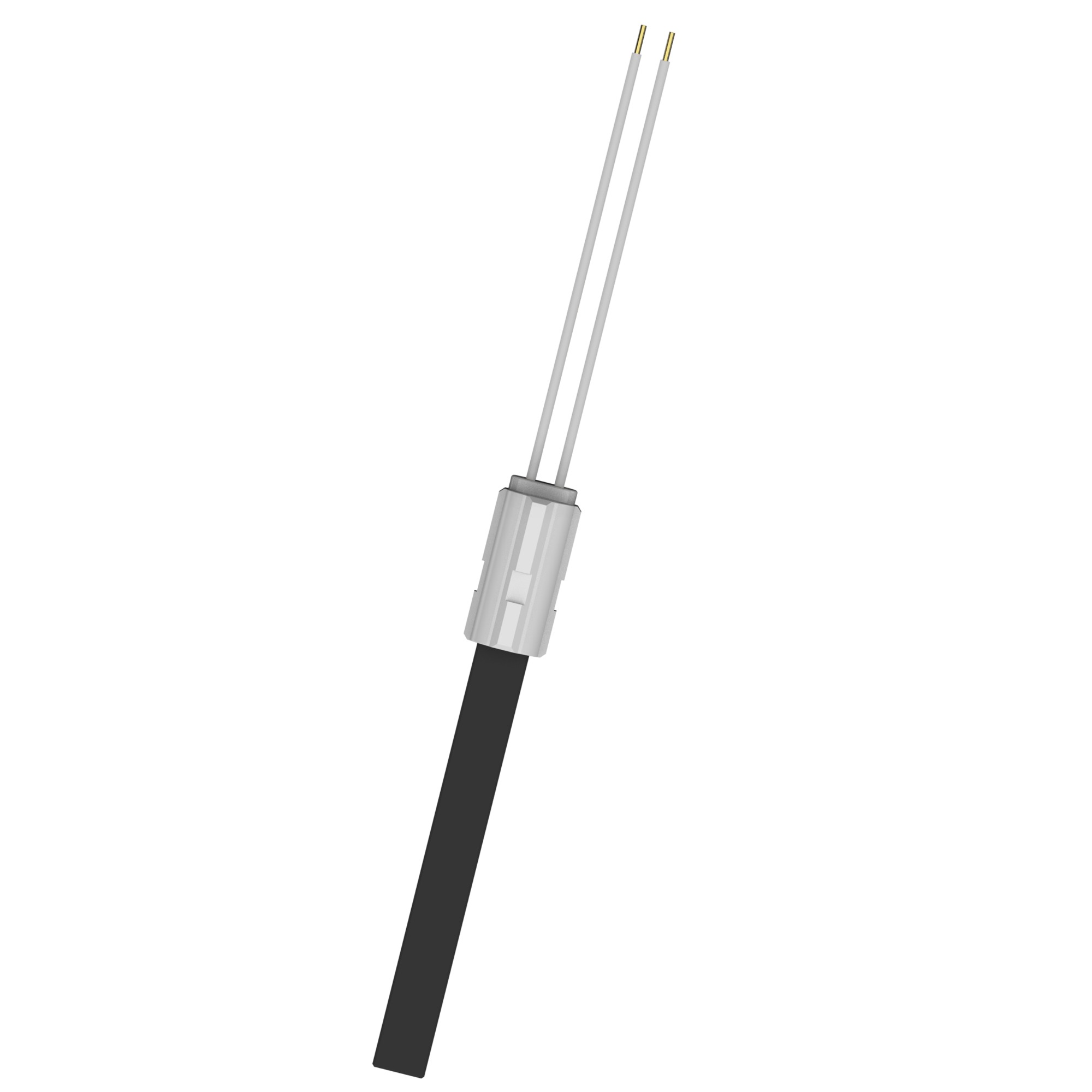

HF1202 Series Silicon Nitride Igniter

Name: HF1202 Series Silicon Nitride Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1202 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1202 Series

【90s Ignition Time & 100% Pit Boss Igniter Replacement】【Patented Aerospace Ignition Technology - Quick To Ignite & Durable, Safe To Use】【Stable Heating & Small Size Igniter】
if you need more technical information,please contact info@heatfounder.com.

Ask for a Solution PDF Format

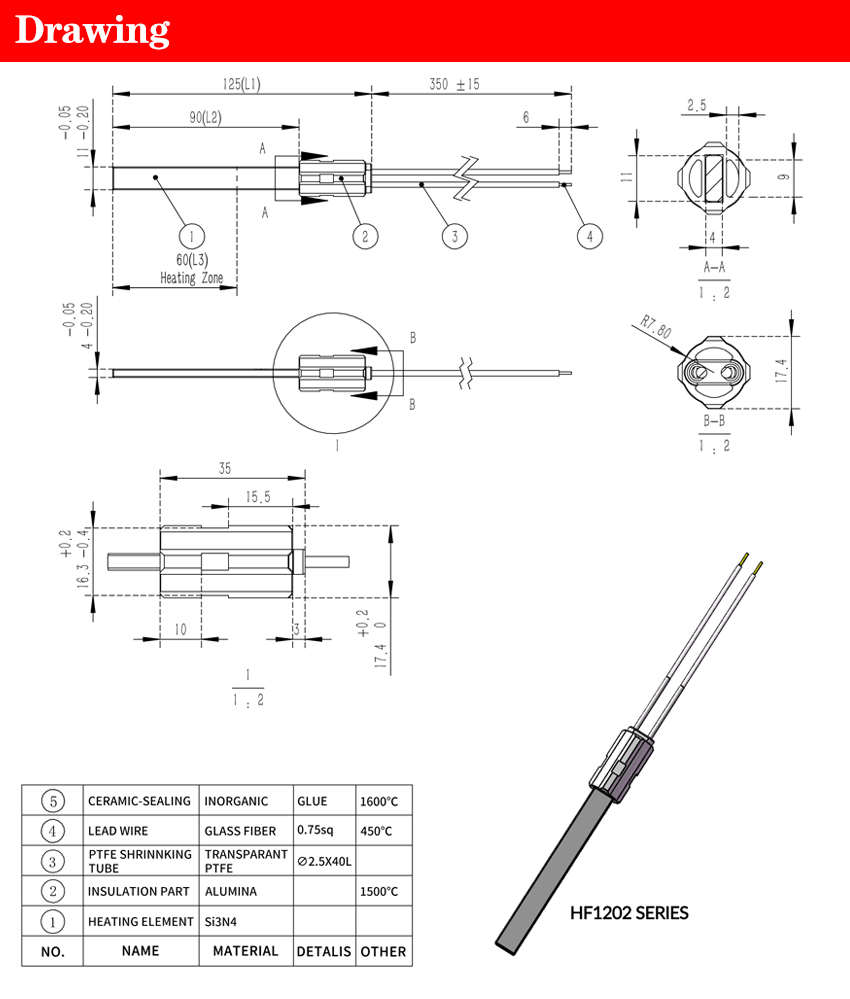

Description DRAWING

Targeted Performance for High-Demand Ignition Systems
The HF1202 Series is designed for engineers and equipment builders seeking a stable and durable silicon nitride igniter capable of consistent spark-free ignition. Its dense microcrystalline structure provides rapid temperature rise and high thermal strength, allowing reliable operation in combustion chambers with fluctuating airflow and repeated start-stop cycles. The igniter maintains stable resistance values and predictable heating curves, supporting applications where dependable performance is required for gas boilers, pellet systems, aerospace auxiliary ignition units, and compact burner assemblies. As a precision component, it provides measurable efficiency gains compared with legacy metal rods and reduces the frequency of ignitor replacement in critical systems.

Technical Design with Controlled Heat Distribution
Engineered using fully sintered silicon nitride, the HF1202 igniter integrates advanced insulating ceramics to ensure uniform thermal conduction across the heating zone. Its internal conductive path is optimized to maintain accurate wattage control, enabling rapid ignition without excessive power spikes. This construction provides significantly improved durability over conventional ceramic heater rods and reduces structural fatigue during long-term use. The igniter’s compact form factor supports integration into multi-stage burner modules, automated gas control systems, pellet heaters, and compact fuel-air devices requiring fast-acting ignition behavior. The thermal shock resistance enables operation in high-vibration settings, making it beneficial for both industrial heating systems and specialized aerospace support units that demand high resilience.

Application Value Across Diverse Combustion Equipment
By adopting advanced ceramic heater elements technology, the HF1202 Series functions as a direct plug-in upgrade for systems needing improved ignition reliability and longer operational cycles. Its engineering is optimized for applications including pellet grills, furnace pre-heaters, turbine starter modules, gas-powered laboratory devices, and mobile heat-generation units where compactness matters. The high resistance to oxidation and chemical exposure ensures consistent operation even in rich-fuel environments, supporting stable combustion and reduced emissions. With its predictable ignition curve and consistent surface temperatures, it is a practical solution for designers who must comply with safety protocols while improving service intervals for systems utilizing a hot surface ignitor.

Product Advantages

Reinforced Structural Integrity for Extended Service Life
The HF1202 igniter uses a fully densified silicon-nitride matrix engineered to reduce micro-cracks and enhance mechanical strength. This structure extends operational life under demanding thermal cycling and vibration loads. For engineers upgrading older configurations, the igniter provides measurable improvements over metal rods or partially sintered components. The enhanced material stability reduces breakage incidents during installation and supports long-term stability for systems requiring a dependable hot surface ignitor.

Thermal Control and System Compatibility
With optimized thermal resistance and precisely defined heating pathways, the HF1202 integrates easily into burner assemblies requiring specific wattage ranges and warm-up times. Its compatibility helps streamline replacement procedures for technicians performing ignitor replacement on boilers, pellet systems, or compact turbines. The stable electrical profile minimizes load fluctuations, supporting modern controllers that require predictable heating curves.

Improved Safety and Ignition Reliability
The uniform heating output reduces cold-spot formation and contributes to consistent ignition across a wide range of air-fuel conditions. Systems relying on a dependable silicon nitride igniter gain improved startup reliability, reducing delayed-ignition risks and enhancing combustion efficiency. The anti-oxidation ceramic formulation supports clean operation over extended cycles, lowering maintenance frequency.

Use Scenarios

Integration in Gas Heating System Maintenance
Field technicians maintaining gas boilers, pellet burners, and compact heating units can use the HF1202 Series as a direct upgrade for worn components. Its durability reduces downtime and simplifies ignitor replacement, helping operators maintain consistent ignition and reduce service intervals.

Engineering Teams Designing Fuel-Air Combustion Units
Product designers and engineering consultants developing next-generation gas-air equipment can integrate this silicon nitride igniter to improve ignition uniformity and system response time. The predictable thermal behavior helps with compliance validation and controller tuning.

Aerospace and High-Performance Ignition Applications
For aerospace auxiliary ignition modules, experimental propulsion labs, and advanced combustion R&D, the HF1202 delivers a high-resilience ceramic heater solution suitable for repeated ignition cycles, vibration stress, and controlled thermal loads.

Name	Silicon Nitride Igniter
Model	HF1202 Series
Material	Silicon Nitride (Si3N4)
H.S. Code	8516800000
Color	black
Voltage	24V 120V 230V
Power	120W 300W 350W 400W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	1100~1300 °C/2012~2372℉
Ignition Time	up to 1000°c in 10 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler
Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature:1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing

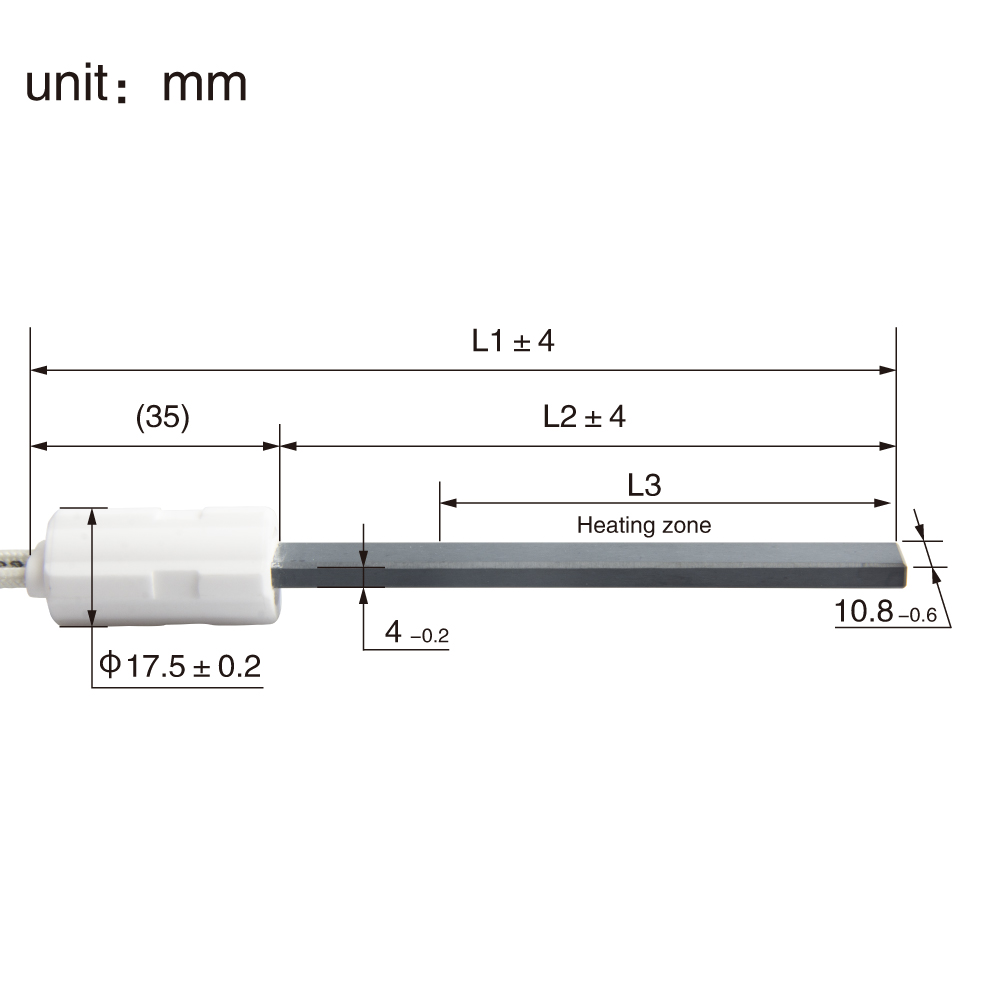

Model Number	Voltage(V)	Rating power(W)	Width(MM)	Total length Width(MM)	Length under flange(MM)	Length of Hot Zone(MM)	Max.OD.flange(MM)
HF1202001	230	400	10.8	125	90	60	17.4
HF1202002	230	350	10.8	125	90	60	17.4
HF1202003	230	300	10.8	125	90	60	17.4
HF1202004	120	400	10.8	125	90	60	17.4
HF1202005	24	120	10.8	125	90	60	17.4

FAQ

Does the HF1202 igniter require a specific controller or voltage range?
It operates within standard heating circuit ranges used in gas and pellet ignition modules, allowing integration without redesigning the control board.

How long is the expected service life under continuous cycling?
The fully sintered silicon-nitride body withstands repeated heating cycles and vibration, offering significantly longer life compared with metal-rod igniters.

Is it suitable as a direct ignitor replacement for pellet grills or boilers?
Yes, the heating curve and mounting dimensions support direct replacement in most systems requiring a hot surface ignitor.

What conditions affect performance stability?
Proper airflow, clean fuel delivery, and stable voltage supply ensure consistent operation and protect the ceramic heating zone.

How is the igniter protected during transport and installation?
Each unit is packaged in shock-resistant material to protect the ceramic heater elements, and technicians should avoid bending or twisting the heating tip.
