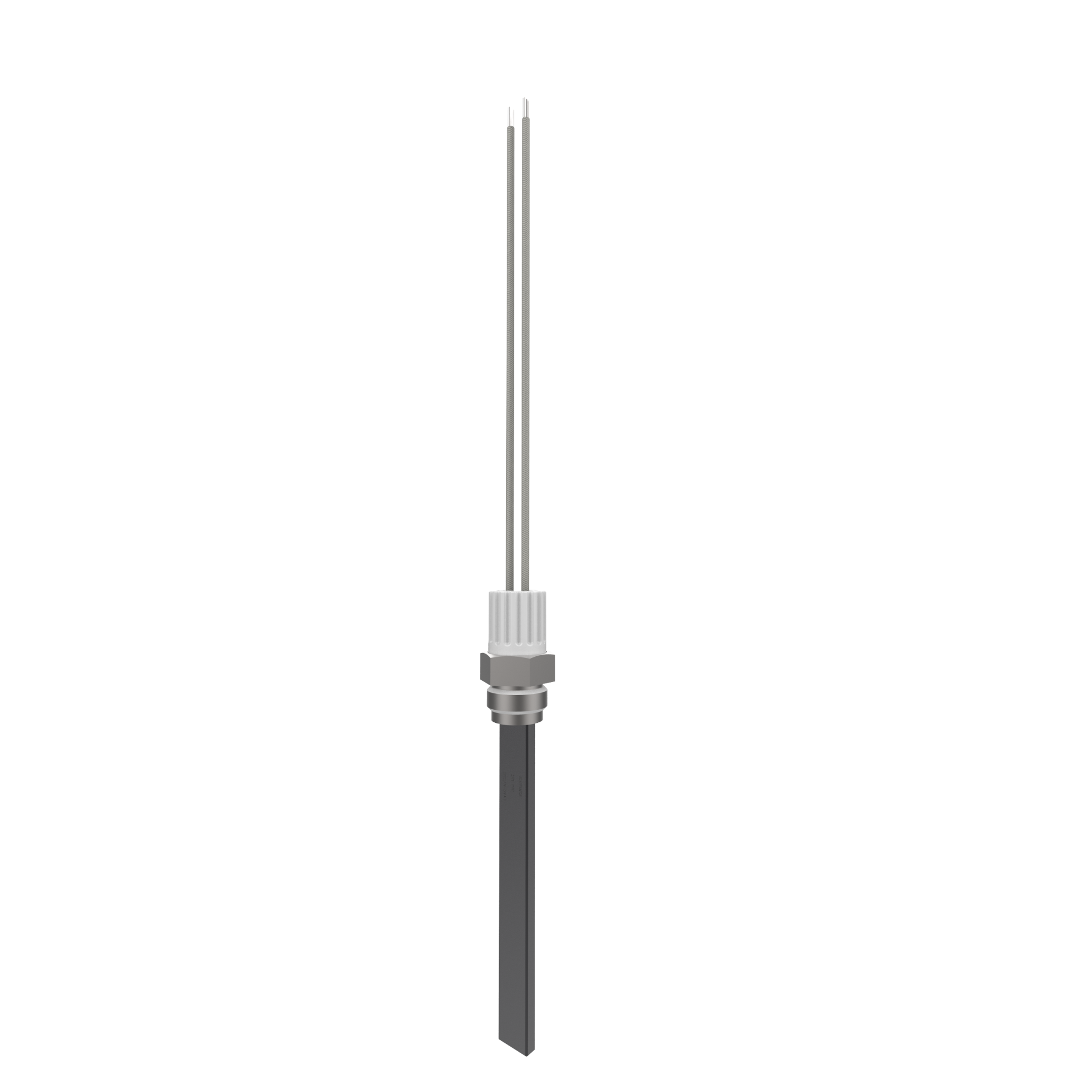

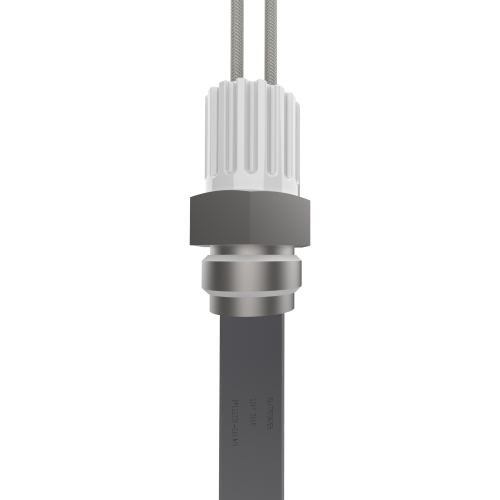

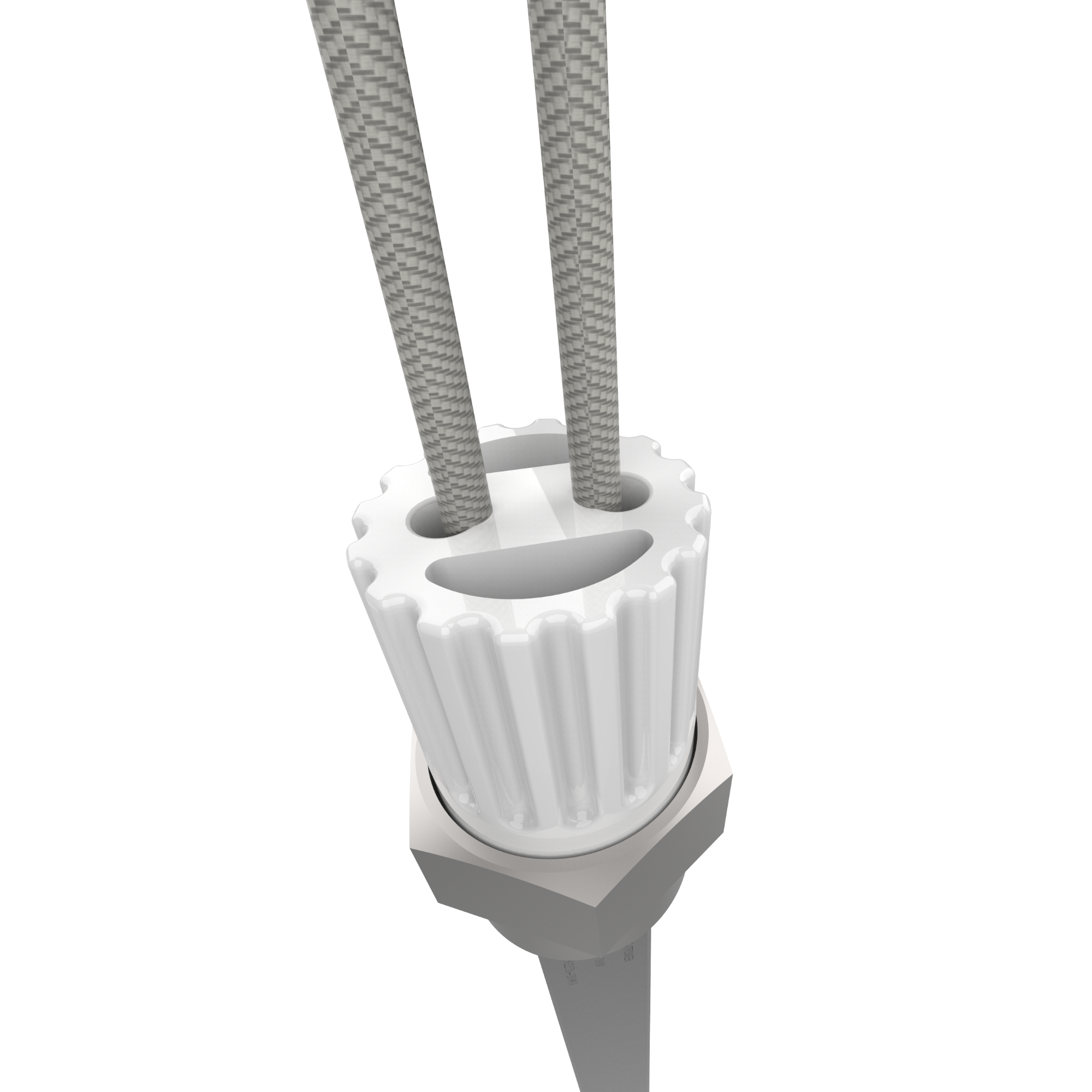

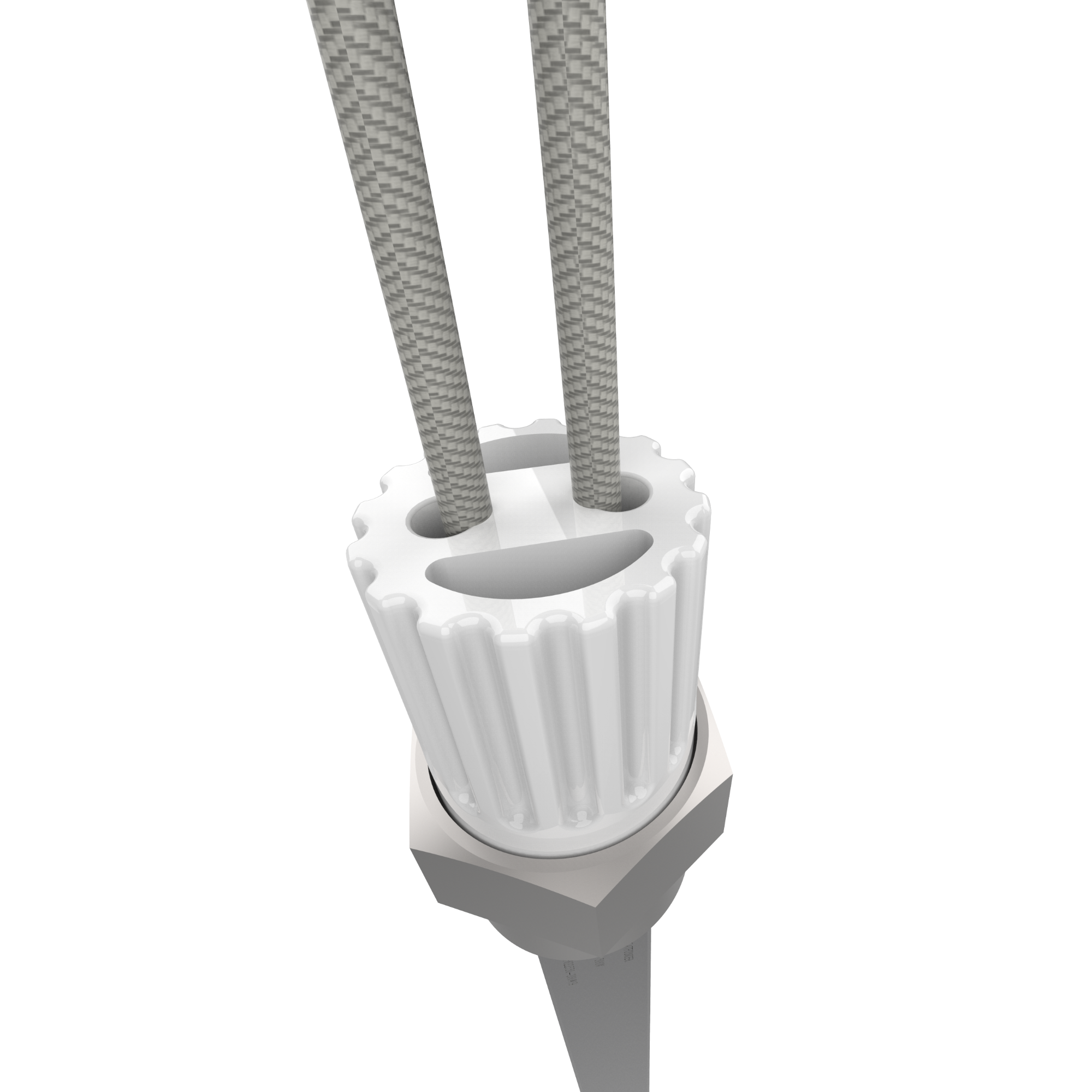

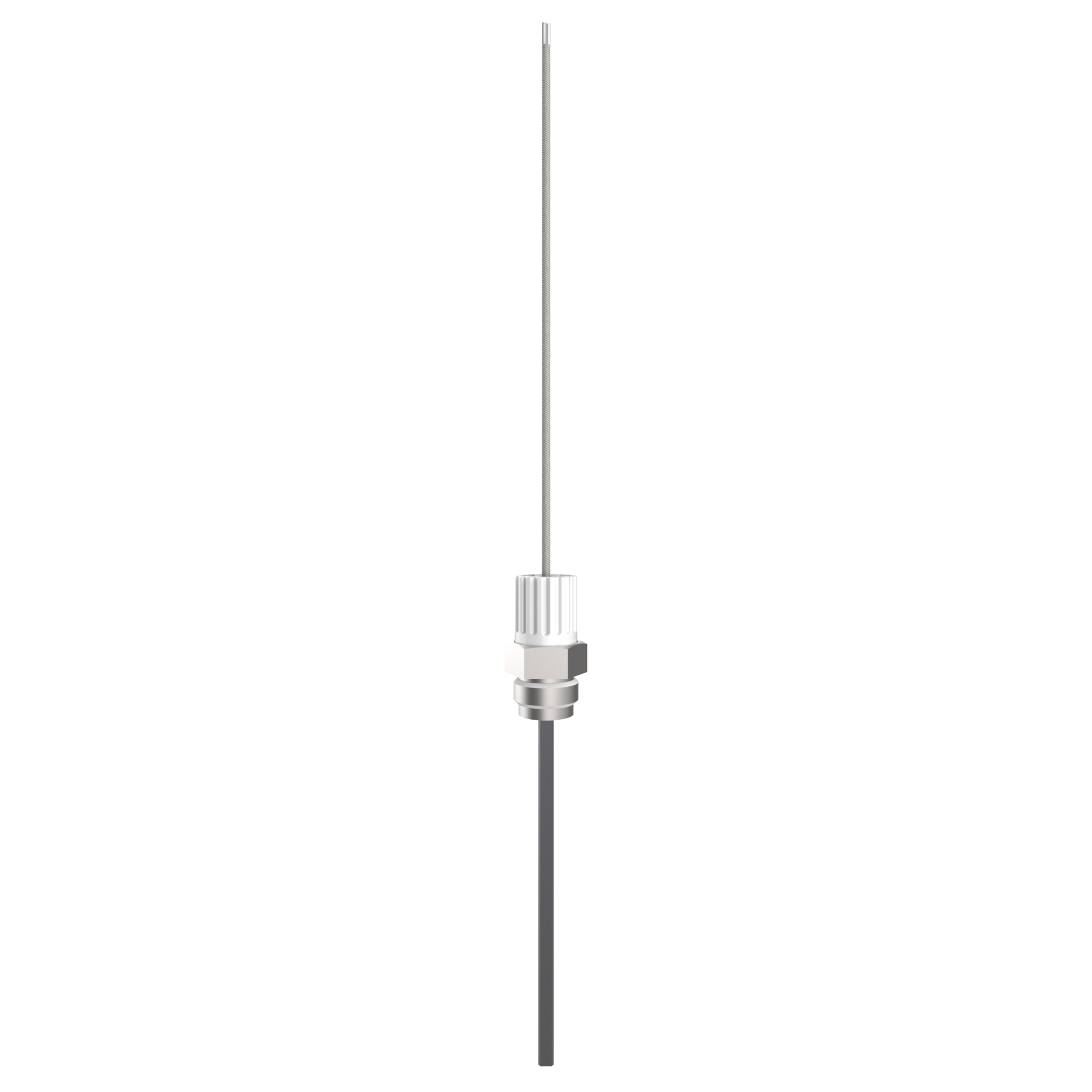

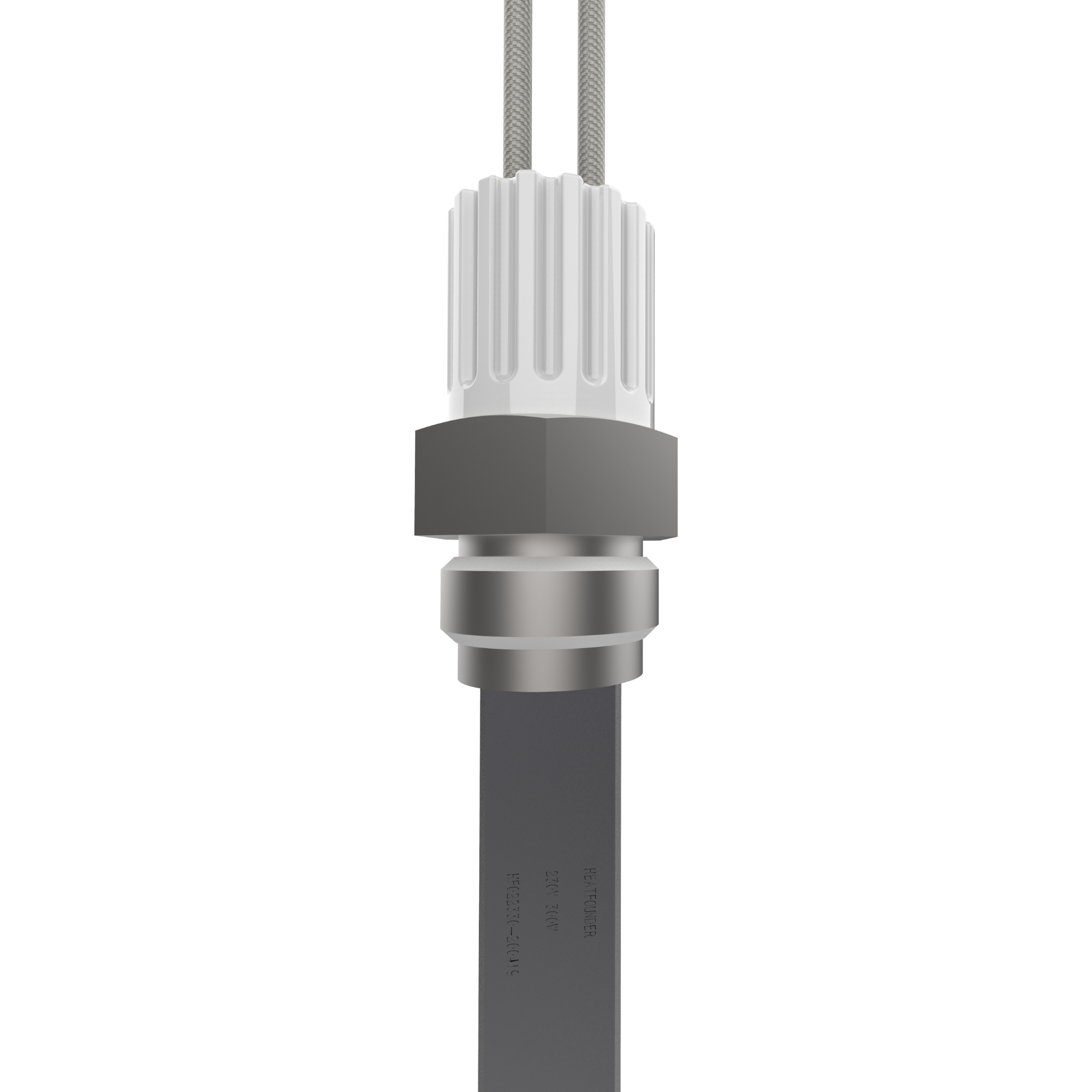

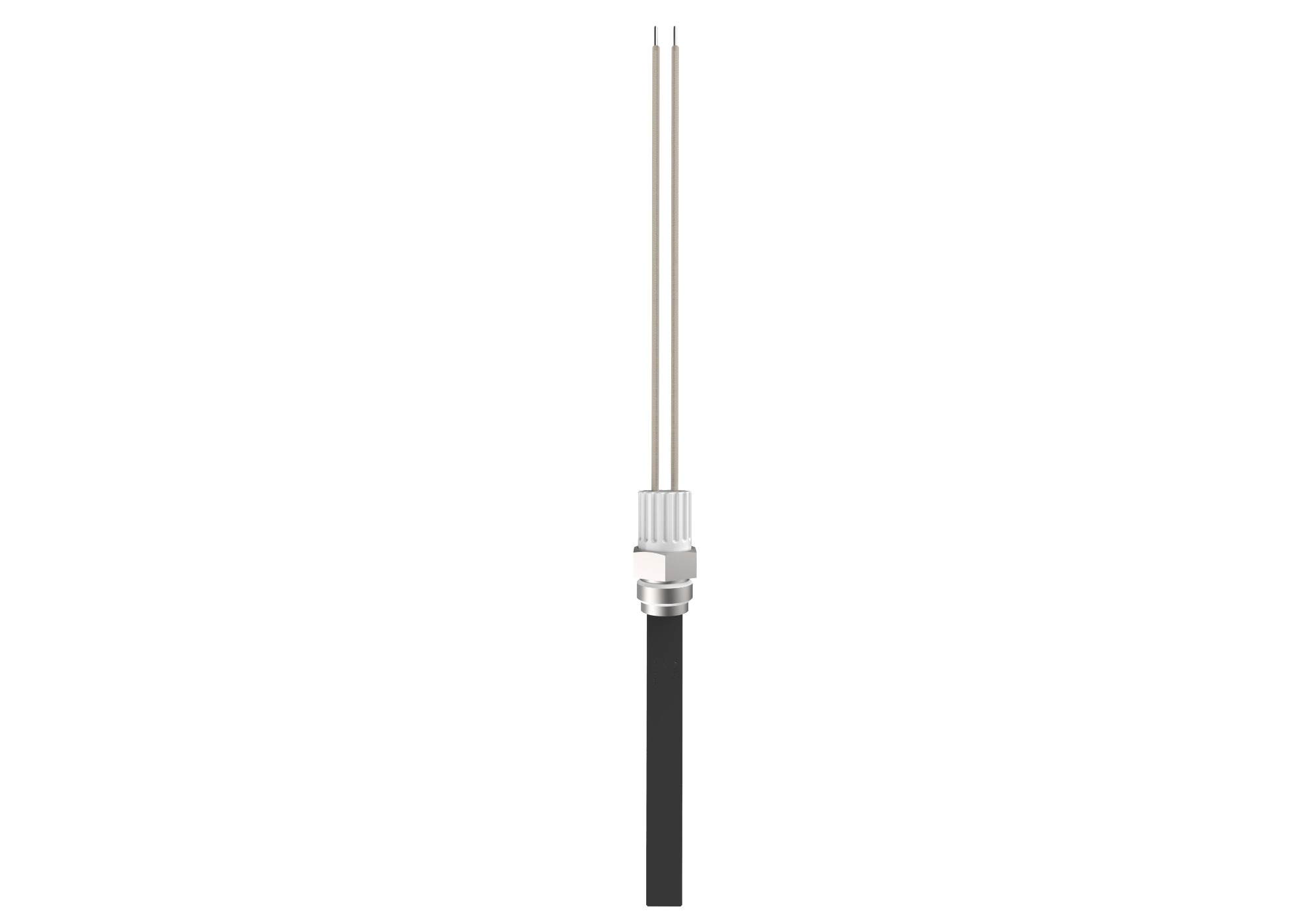

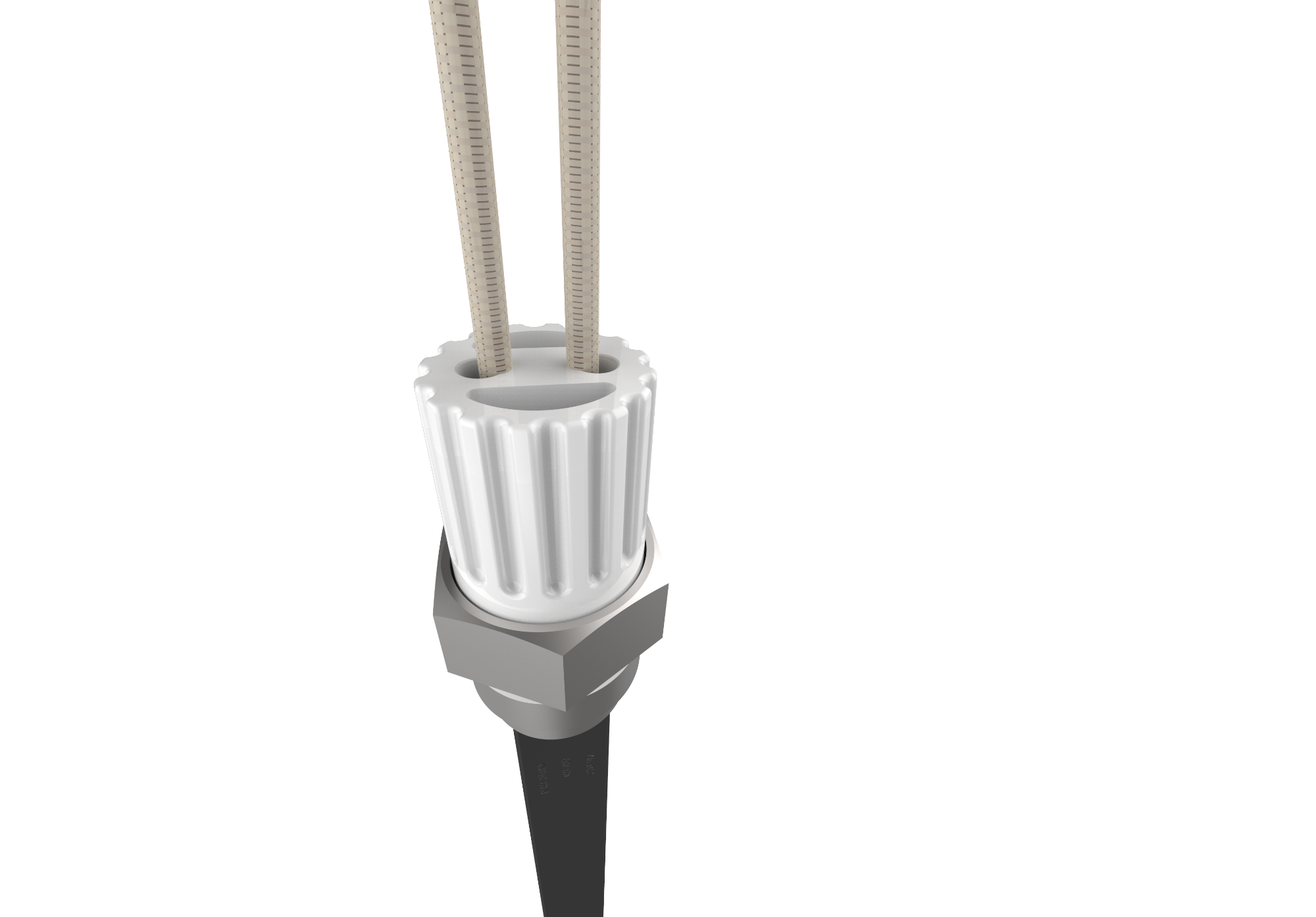

HF1205 Series Silicon Nitride Igniter

Name: HF1205 Series Silicon Nitride Igniter
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: HF1205 Series
Availability: InStock
Rating: 5 (1 reviews)

Item No.: HF1205 Series

【90s Ignition Time & 100% Pit Boss Igniter Replacement】【Patented Aerospace Ignition Technology - Quick To Ignite & Durable, Safe To Use】【Stable Heating & Small Size Igniter】
if you need more technical information,please contact info@heatfounder.com.

Ask for a Solution PDF Format

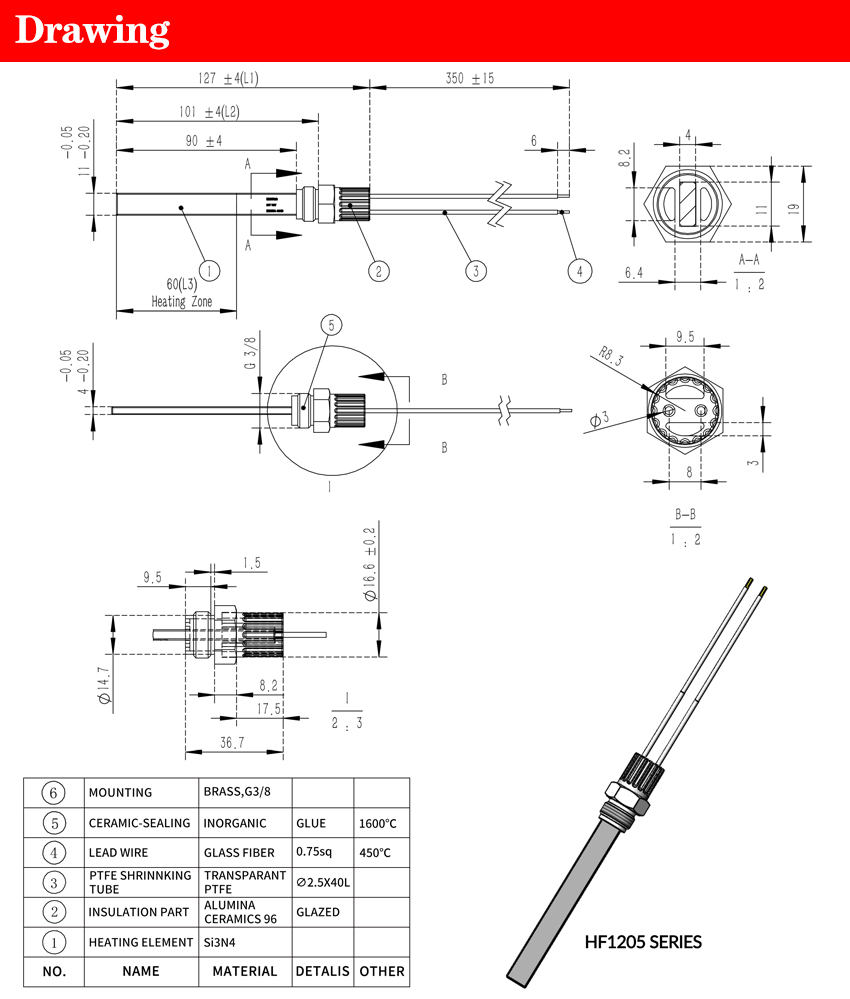

Description DRAWING

Optimized for Precision Heating Systems
The Silicon Nitride Igniter HF1205 Series is engineered to serve industries requiring robust and efficient ignition solutions. Primarily designed for equipment engineers and procurement specialists, this igniter for furnace applications supports rapid startup cycles and maintains reliability under harsh operating conditions. Its targeted users include manufacturers of biomass and gas burners, pellet stoves, and medical heating devices where ignition precision and durability dictate overall system performance. The HF1205’s compatibility with diverse voltage and power configurations facilitates integration into varied thermal management systems, supporting both retrofit and new installation projects.

Advanced Material Science and Performance Metrics
Constructed from high-grade silicon nitride ceramic, the HF1205 series features outstanding mechanical strength and exceptional thermal shock resistance. The igniter reaches operational temperatures up to 1300°C, demonstrating rapid heat-up times of approximately 10 seconds to 1000°C, qualifying it as an efficient hot surface ignitor. Its compact hot zone and customizable flange options—including ceramic, stainless steel, and copper—allow precise thermal distribution while meeting challenging installation constraints. Available in 24V, 120V, and 230V versions at 300W and 400W power ratings, this igniter achieves stable, continuous operation, validated by certifications such as ISO9001 and TUV, ensuring adherence to stringent quality and safety standards.

Versatile Applications in Industrial and Commercial Heating
The HF1205 is extensively deployed across sectors requiring dependable ignition for ceramic heater systems and combustion devices. It excels in biomass and pellet burner ignition, delivering rapid flame initiation for improved process efficiency. The series is also suitable for gas-fired commercial furnaces, pellet BBQ grills, and advanced medical heating equipment where consistent thermal activation is critical. Additionally, the igniter contributes to energy savings and operational reliability in electric vehicle heating components and exhaust gas treatment systems. Its broad compatibility supports seamless integration, minimizing downtime and extending equipment lifecycle.

Product Advantages

Integrated Design for Seamless System Compatibility
The HF1205 series exhibits a compact design that maximizes watt density while maintaining minimal physical footprint, facilitating its role as an effective furnace ignitor replacement. Its modular flange customization allows adaptation to various mounting environments, providing engineers with flexibility in configuring thermal assemblies. The robust silicon nitride material ensures exceptional mechanical integrity under cyclic thermal loads, increasing device longevity compared to conventional hot rod igniter alternatives. This design approach reduces maintenance frequency and enables legacy system upgrades without extensive modifications, promoting cost-effective refurbishment in industrial heating installations.

Enhanced Performance and User-Centric Reliability
Delivering swift ignition response times and high thermal stability, this igniter supports continuous operation at elevated temperatures, enhancing system uptime and process control accuracy. The HF1205’s proven durability reduces operational failures in critical heating apparatus, benefiting engineers and operators by lowering unscheduled maintenance risks. Its compatibility with multiple voltage ranges and power outputs simplifies design validation and procurement, ensuring smooth integration into complex furnace controls. Moreover, consistent performance under stringent certifications such as ISO9001 assures end users of a trustworthy furnace ignitor solution that meets rigorous industry norms.

Name	Silicon Nitride Igniter
Model	HF1205 Series
Material	Silicon Nitride (Si3N4)
H.S. Code	8516800000
Color	black
Voltage	24V 120V 230V
Power	300W 400W
Flange	Ceramic/Stainless Steel/copper/customized
Temp Range	1100~1300 °C/2012~2372℉
Ignition Time	up to 1000°c in 10 seconds
Samples fee	Please contact for confirmation.
Packing	carton
Lead time	5 working days for samples; 12 working days for mass production
QC	Strict quality control under SGS, ISO9001 and Intertek.
Certification	BSCI, ISO9000/1400,BV TUV SGS FSC etc.
Applications
Biomass boiler/burner	Pellet burners
Gas burner/stove	Pellet boiler
Ignition of gas or oil	Pellet burner
Pellet Stove	Pellet BBQ grill
Stove fireplace	Medical-Scientific
Wood pellet stove	Heaters-Agricultural
Particle Burning	Spark Igniters
Fuel cells	EV heating
Gas appliances	Glow plug
Petroleum equipment	Cabin heater
Soldering iron	Gas sensor
gas furnaces,	DPF/Catalyst
gas boiler
Rapid heating: Heating faster. up to 1000°c in 10 seconds Range of temperature: 1100~1300 °C/2012~2372℉ Small size / High watt density: High-watt density discharge allow high thermak efficiency. Long working life:10 years possible,90,000 hours High insulation Direct water and kerosene heating Vacuum environment Oxidation and chemical resistance Output switching Temperature sensing

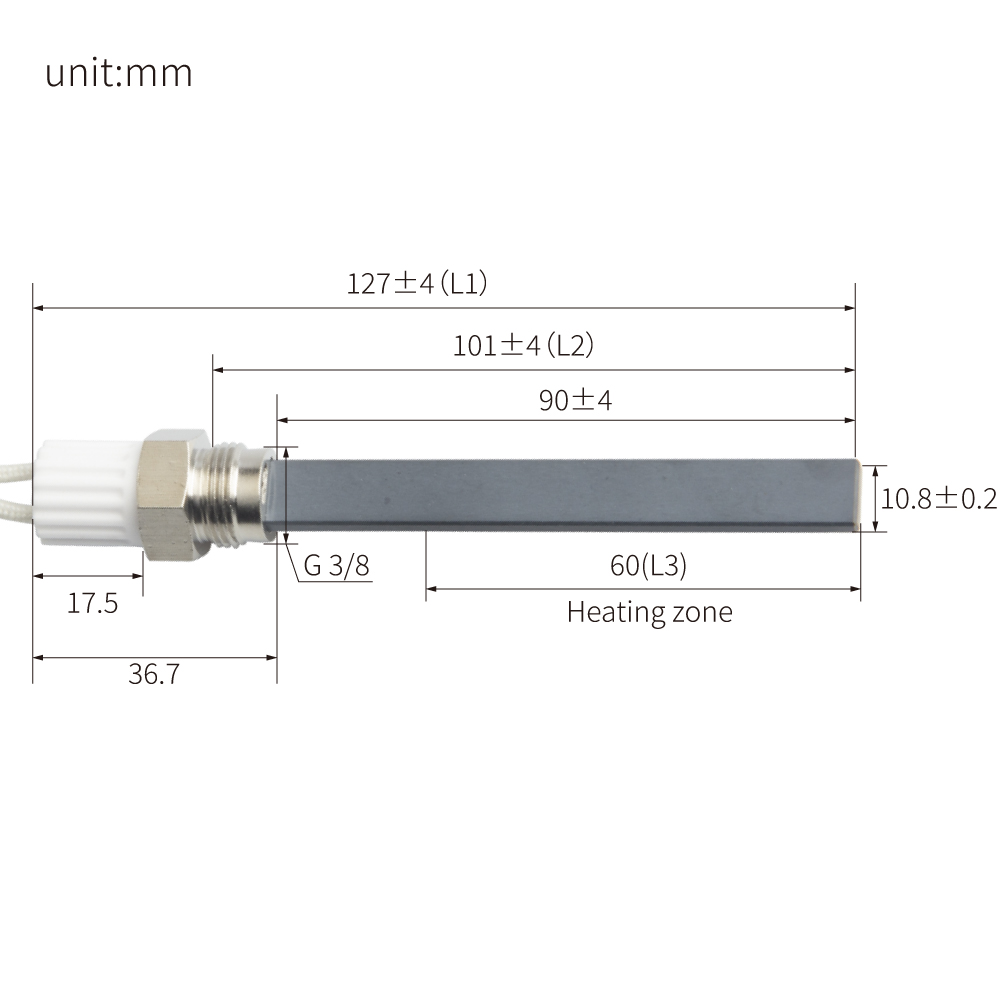

Model Number	Voltage(V)	Rating power(W)	Width(MM)	Total length Width(MM)	Length under flange(MM)	Length of Hot Zone(MM)	Max.OD.flange(MM)
HF1205001	230	300	10.8	127	101	60	G3/8
HF1205002	230	400	10.8	127	101	60	G3/8
HF1205003	120	400	10.8	127	101	60	G3/8
HF1205004	24	400	10.8	127	101	60	G3/8

Use Scenarios

Ignition Solutions for Biomass and Pellet Heating Systems
In industrial biomass and pellet burner applications, rapid, reliable ignition is essential for process efficiency and emissions control. The HF1205 series acts as a hot surface ignitor that reliably initiates combustion under varying fuel conditions, maintaining stable thermal output during startup. Its high operating temperatures and fast response times reduce fuel wastage and optimize burner cycles. Through customized flange options, it integrates seamlessly with existing burner assemblies, supporting operational workflows that demand high availability and compliance with environmental regulations. This ignition solution plays a pivotal role in ensuring stable combustion and improving overall furnace thermal management.

Advanced Ignition for Medical and Specialized Heating Devices
The medical heating equipment sector requires precise and stable ignition sources for controlled thermal environments. The HF1205 igniter for furnace and ceramic heater applications addresses this demand by delivering consistent ignition performance at elevated temperatures with minimal thermal fluctuation. Certified to comply with international quality standards, it ensures dependable operation in sensitive settings like sterilization units and therapeutic heating devices. Its compact footprint and adaptable electrical configurations allow integration into advanced heating controls, contributing to improved patient safety and process efficacy in healthcare environments.

FAQ

What materials are used in the HF1205 series silicon nitride igniter?
Our HF1205 series igniters are made from high-quality silicon nitride ceramic (Si3N4), known for excellent thermal and mechanical properties. We customize flange materials using ceramic, stainless steel, or copper to suit your specific installation requirements.

Can you customize the igniter specifications to fit different furnace systems?
Yes, we offer multiple voltage options (24V, 120V, 230V) and power ratings (300W, 400W) for the HF1205 series. Flange materials can also be tailored to ensure compatibility with your heating devices, making it ideal as a furnace ignitor replacement or upgrade.

How do you ensure the reliability and safety of your hot surface ignitor products?
We conduct rigorous testing and maintain strict quality control under certifications such as ISO9001, SGS, BSCI, and TUV. These standards guarantee that our hot surface ignitors meet industrial safety and performance requirements across various heating applications.

What is the expected delivery time for bulk orders of the HF1205 igniter for furnace use?
For sample orders, the lead time is approximately 5 working days, while mass production typically requires 12 working days. We work to optimize logistics to deliver your igniter for furnace systems promptly and reliably.
