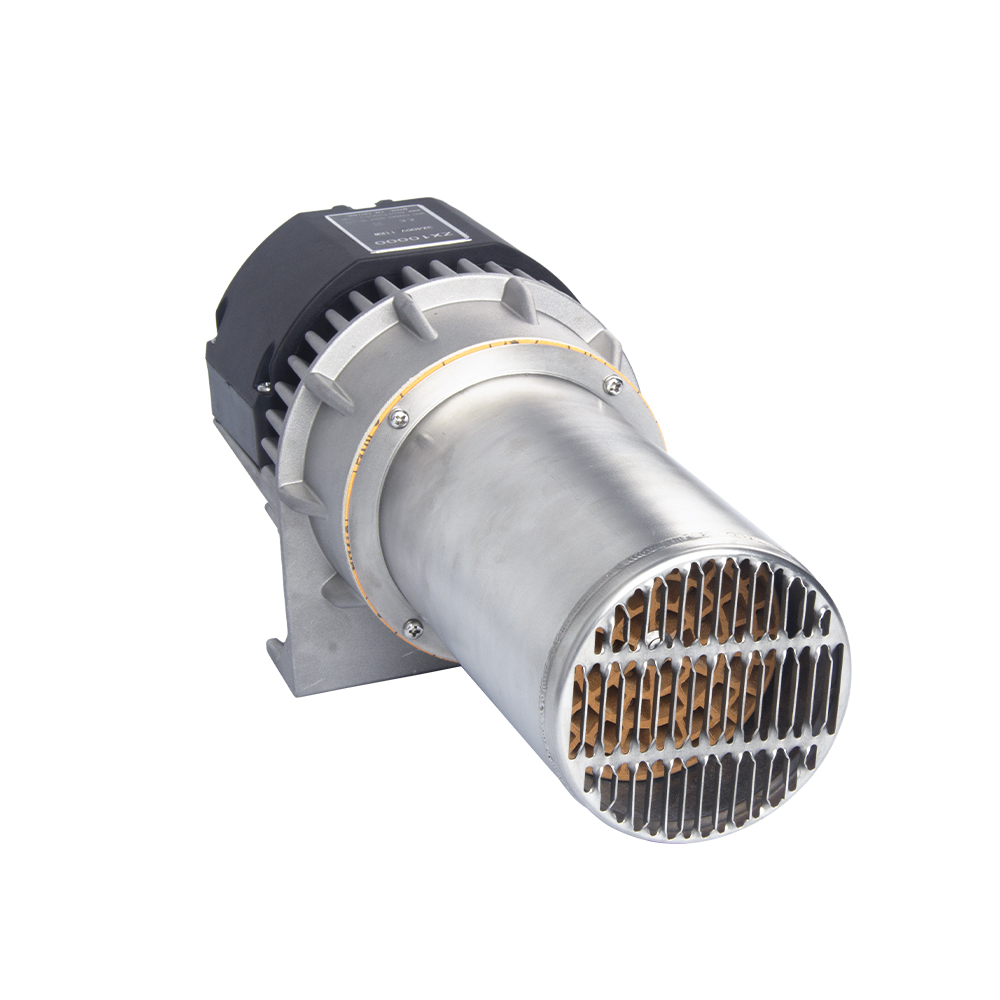

Name: ZX10000 Hot Air Heater 3 Phase,230V/480V 10000W-17000W（Temperature controller to be added）
Brand: HEAT FOUNDER Silicon Nitride Igniter, Silicon Nitride Heating Element
SKU: ZX10000
Availability: InStock
Rating: 5 (1 reviews)

Item No.: ZX10000

Ask for a Solution PDF Format

Description

1. Electronic control temperature, temperature from normal temperature to 650℃ which can be continuously adjusted.
2. Small volume, light weight, easy to install.
3. Matching with air supply equipment, it can be widely used in film shrink tunnel furnace, hose seals the tail machine,
all kinds of dryer, non-woven fabrics in EVA membrane bonders, "heating assembly" of mechanical assembly equipment or the environment.
Measure point of Hot wind temperature is at 3mm from the outlet of Heater. Match with 3 meters before the inlet and adjust the blower to maximum air volume.

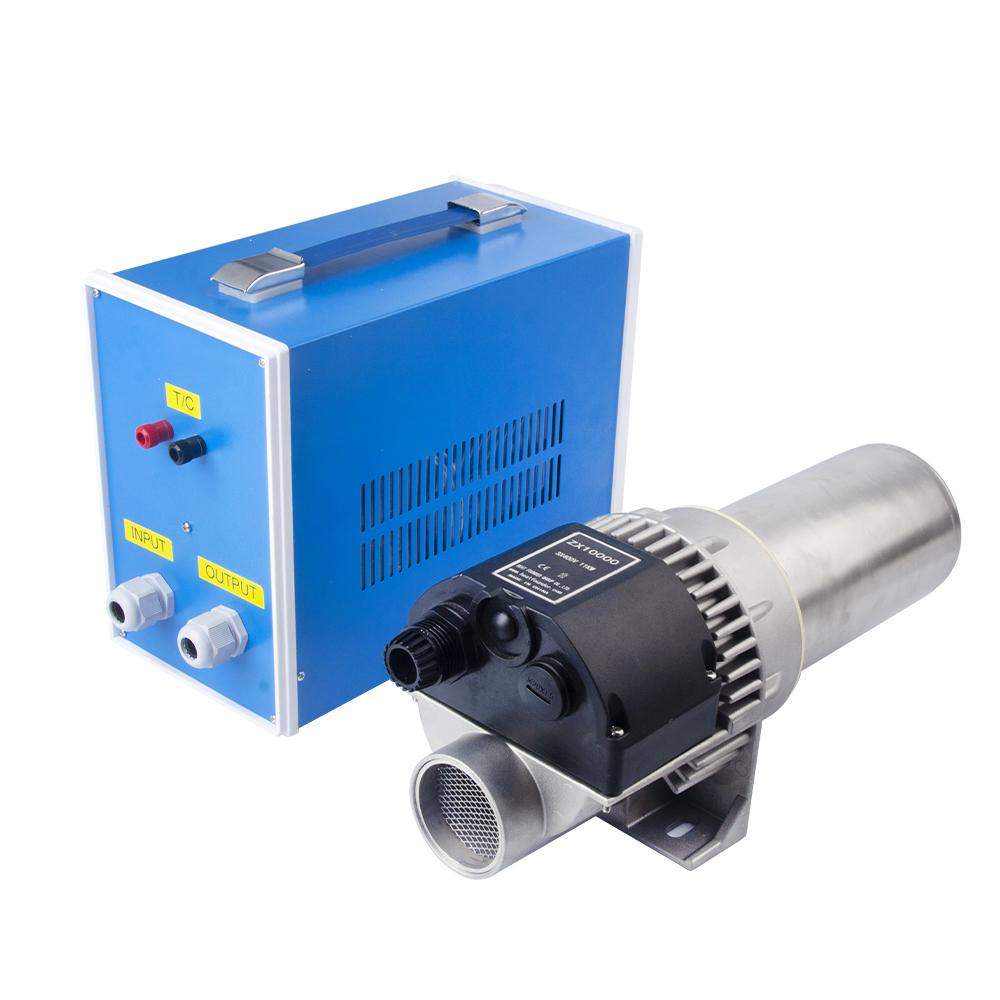

Temperature controller to be added

Model: ZX10000
Power (W): 10000W-17000W(Temperature controller to be added)
Voltage (V): 3 PHasee，230V/480V
Min.airflow(L/min): 1000L/min
Min.inlet Temp. ( °C): 65 °C,
Min.outlet Temp. ( °C): 650 °C,
Dimension (mm): 326 × 135 × 143.5 mm, Air outlet:φ92mm
Weight(kg): 3.2kg
Certification: CE FCC
Warranty: 1 Year

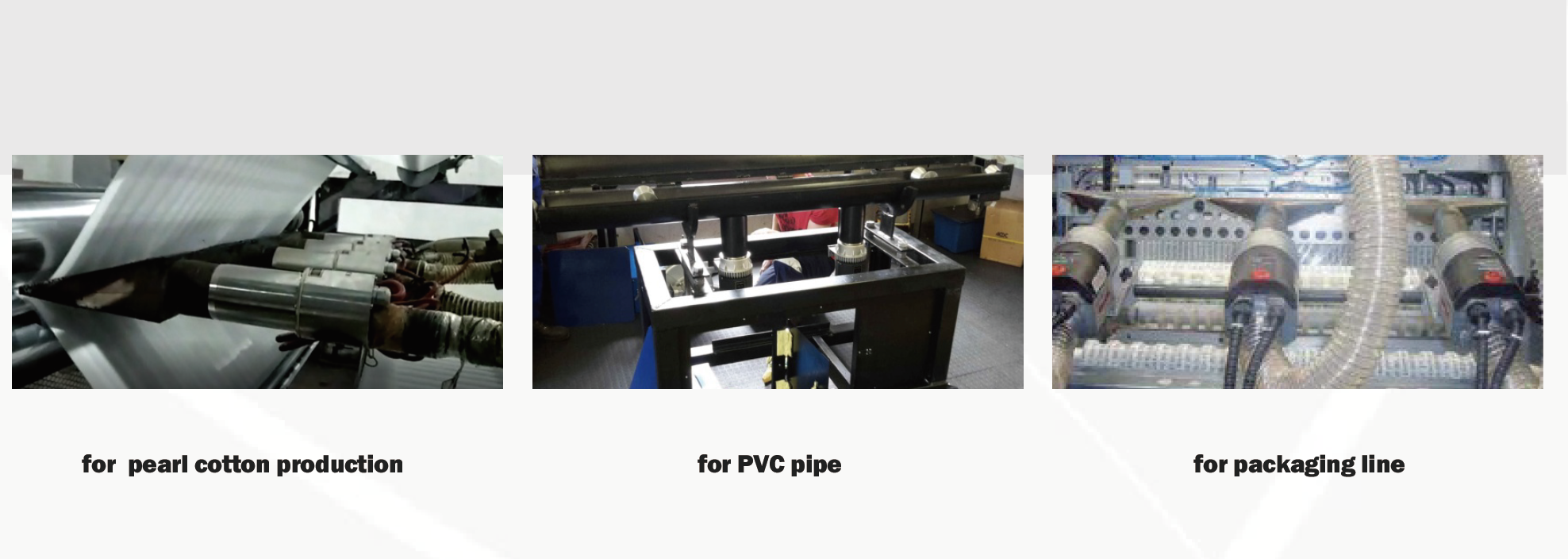

Application
Mainly used for pearl cotton production,packaging machinery,plastic processing,food drying,
woven bag sealing and heating,etc.

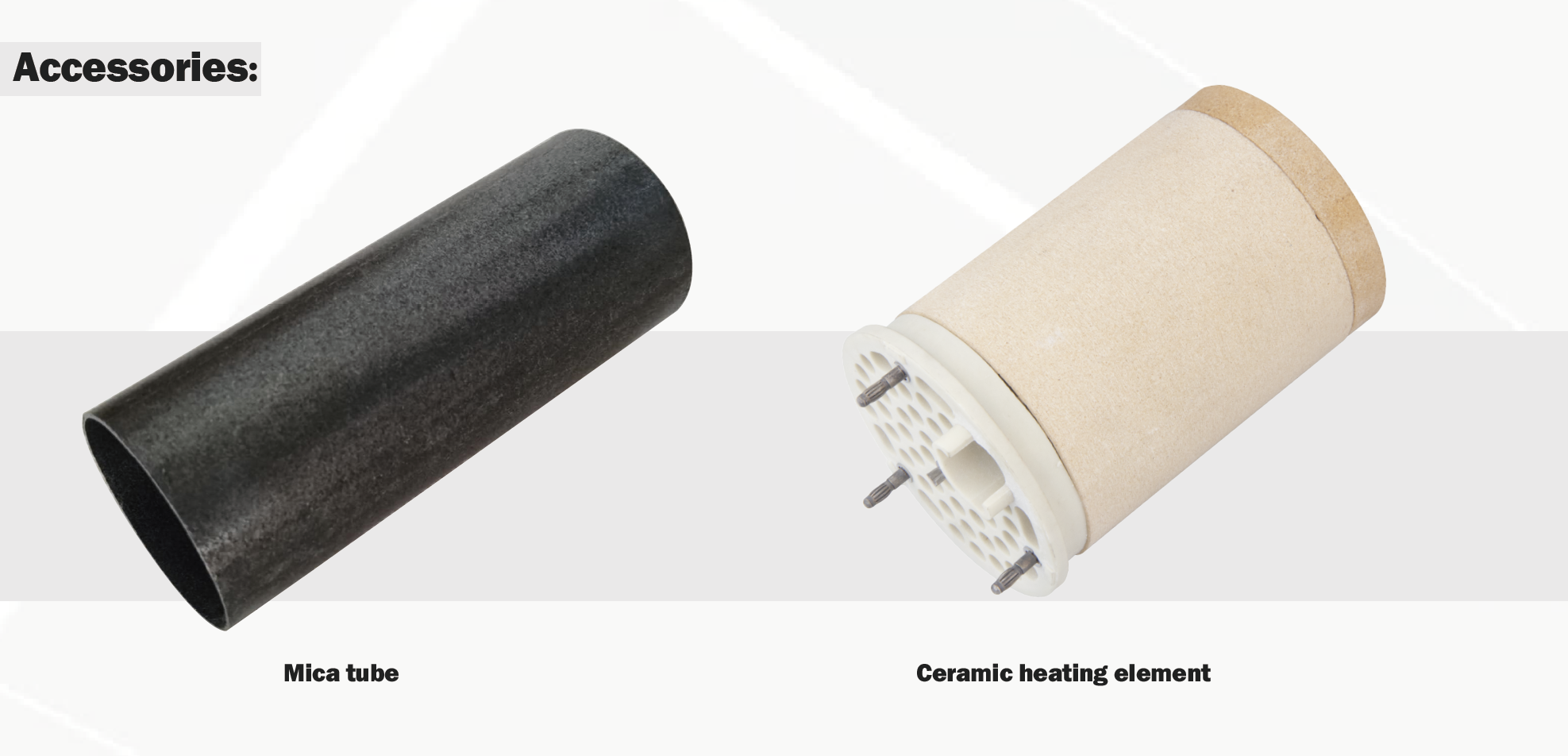

Accessories Ceramic Heating Element
