| Name | Stainless Steel Igniter |
| Model | HF1106 Series |
| Material | Incoloy 800 |
| H.S. Code | 8516800000 |
| Voltage | 230V |
| Power | 350W |
| Flange | Ceramic/Stainless Steel/copper/customized |
| Temp Range | 600~800 °C/1112~1472℉ |
| Ignition Time | 100-180 seconds |
| Samples fee | Please contact for confirmation. |
| Packing | carton |
| Lead time | 5 working days for samples; 12 working days for mass production |
| QC | Strict quality control under SGS, ISO9001 and Intertek. |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. |
| Applications | |
| Biomass boiler/burner | Pellet burners |
| Gas burner/stove | Pellet boiler |
| Ignition of gas or oil | Pellet burner |
| Pellet Stove | Pellet BBQ grill |
| Stove fireplace | Medical-Scientific |
| Wood pellet stove | Heaters-Agricultural |
| Particle Burning | Spark Igniters |
| Fuel cells | EV heating |
| Gas appliances | Glow plug |
| Petroleum equipment | Cabin heater |
| Soldering iron | Gas sensor |
| gas furnaces, | DPF/Catalyst |
| gas boiler | |

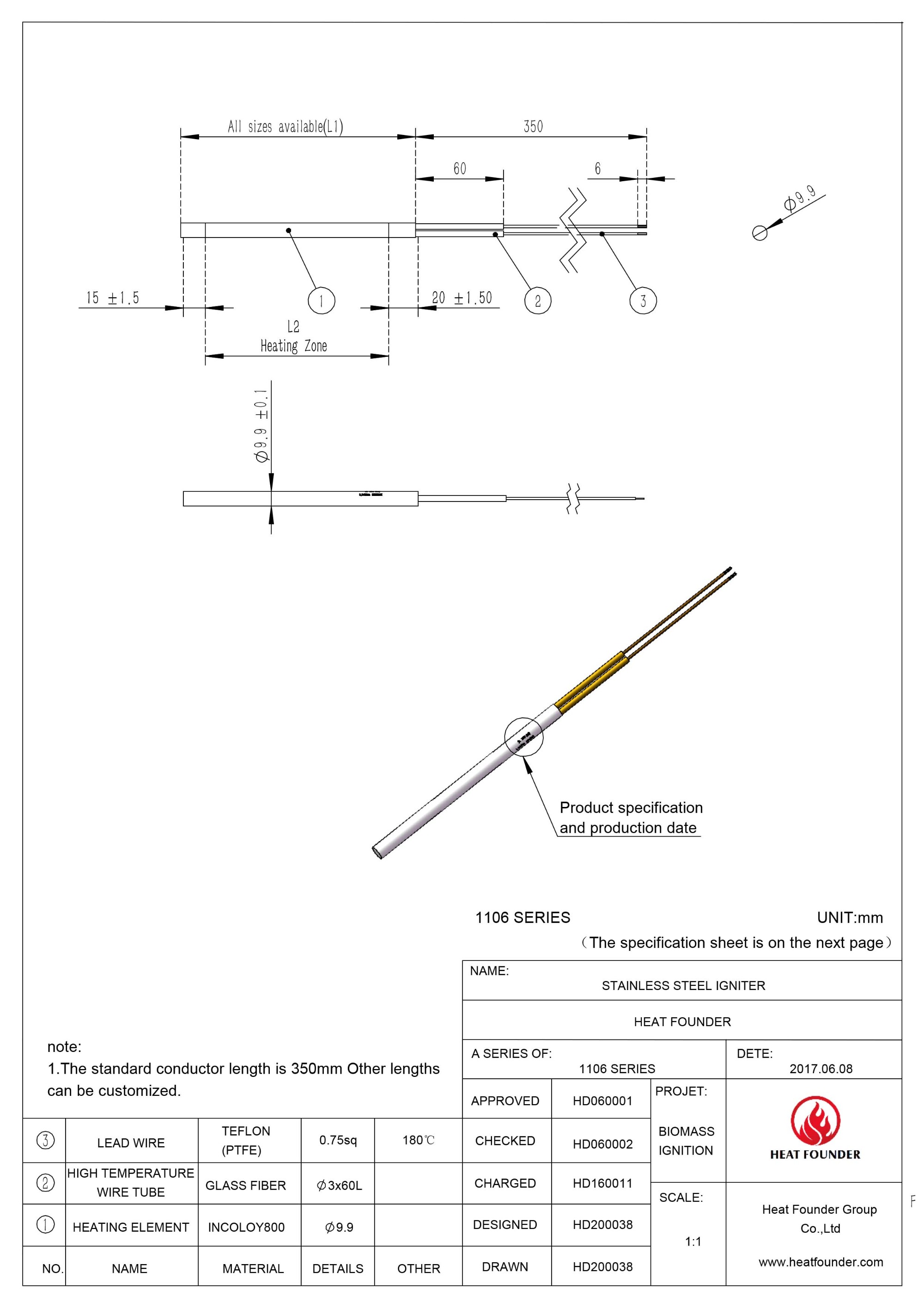

| Model Number | Voltage(V) | Rating power(W) | OD.tube(mm) | Total length L1(MM) | Length under flange Width L2(MM) |
| HF1106001-E | 230V | 300 | 9.9 | 160 | 125 |
| HF1106002-E | 230V | 320 | 9.9 | 183 | 148 |
| HF1106003-E | 230V | 300 | 9.9 | 165 | 130 |
| HF1106004-E | 230V | 300 | 9.9 | 150 | 115 |
| HF1106005-E | 230V | 250 | 9.9 | 150 | 115 |
| HF1106006-E | 230V | 250 | 9.9 | 155 | 120 |
| HF1106007-E | 230V | 280 | 9.9 | 150 | 115 |
| HF1106008-E | 230V | 300 | 9.9 | 125 | 90 |
| HF1106009-E | 230V | 300 | 9.9 | 155 | 120 |
| HF1106010-E | 230V | 300 | 9.9 | 145 | 110 |
