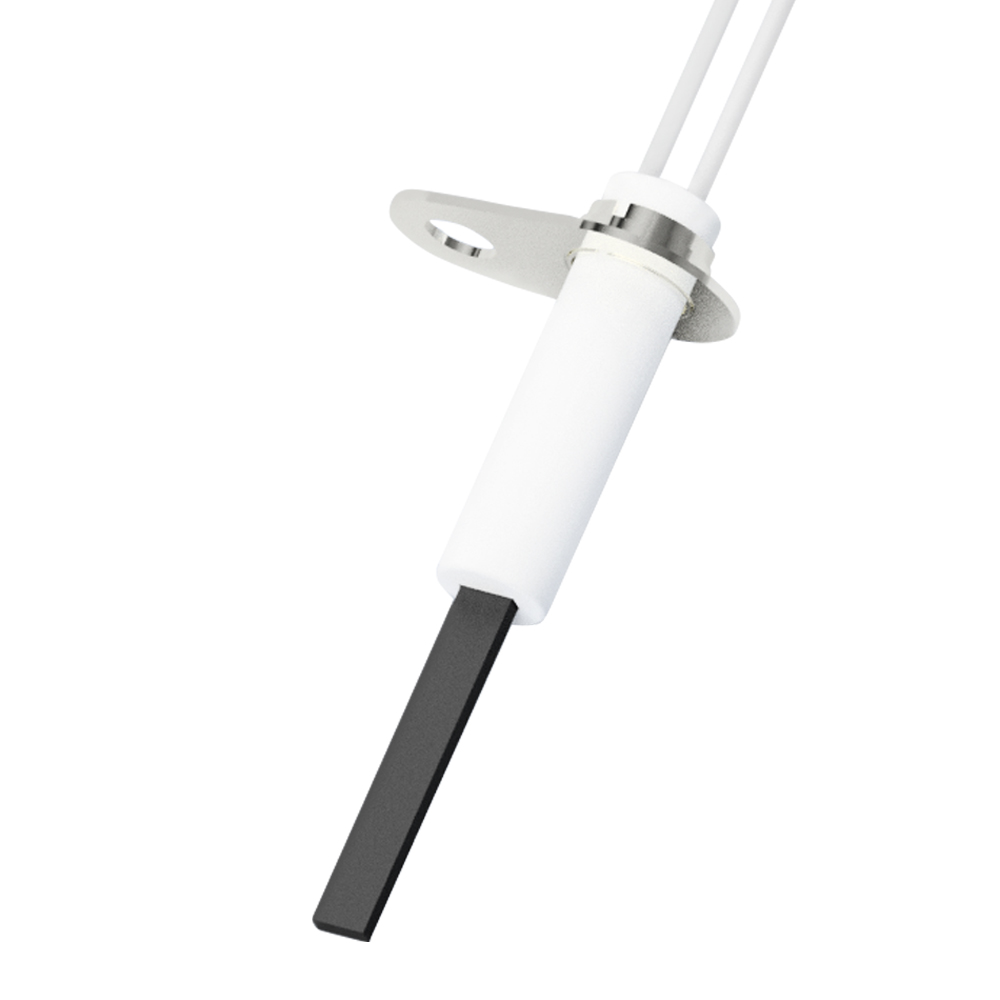

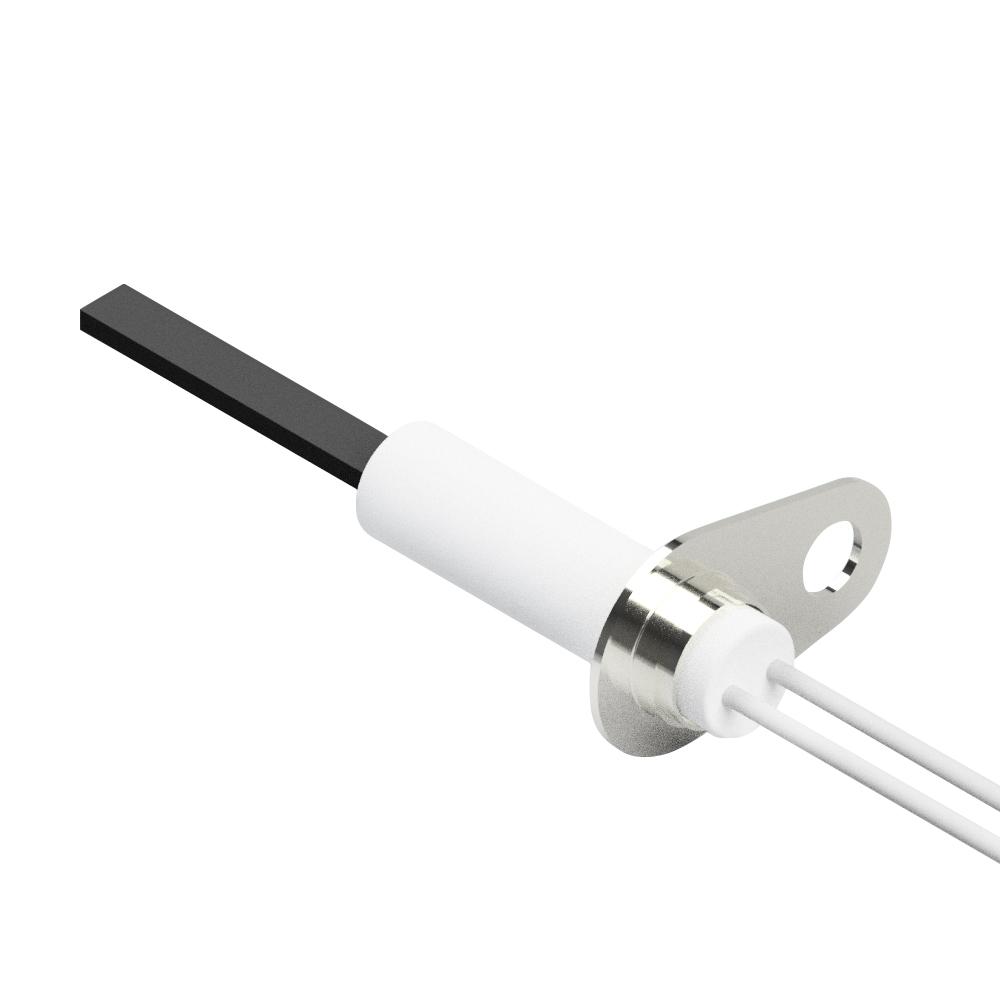

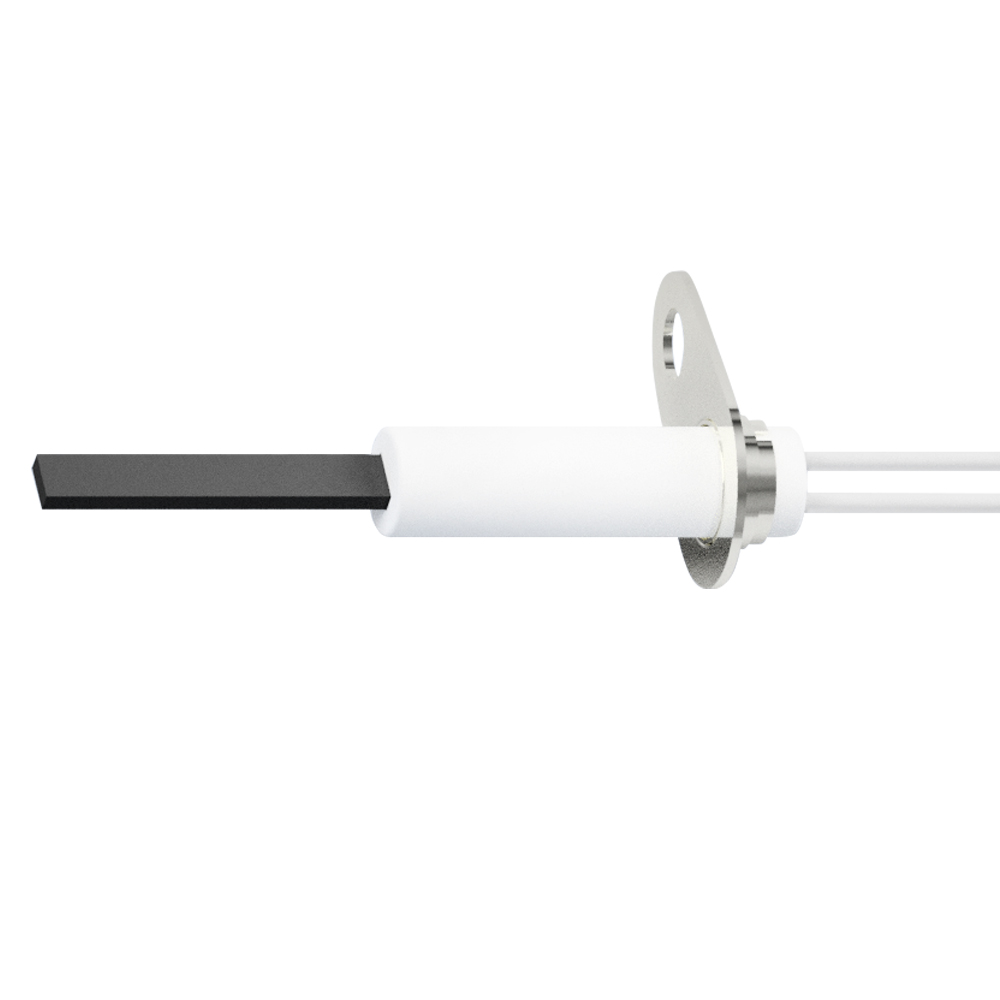

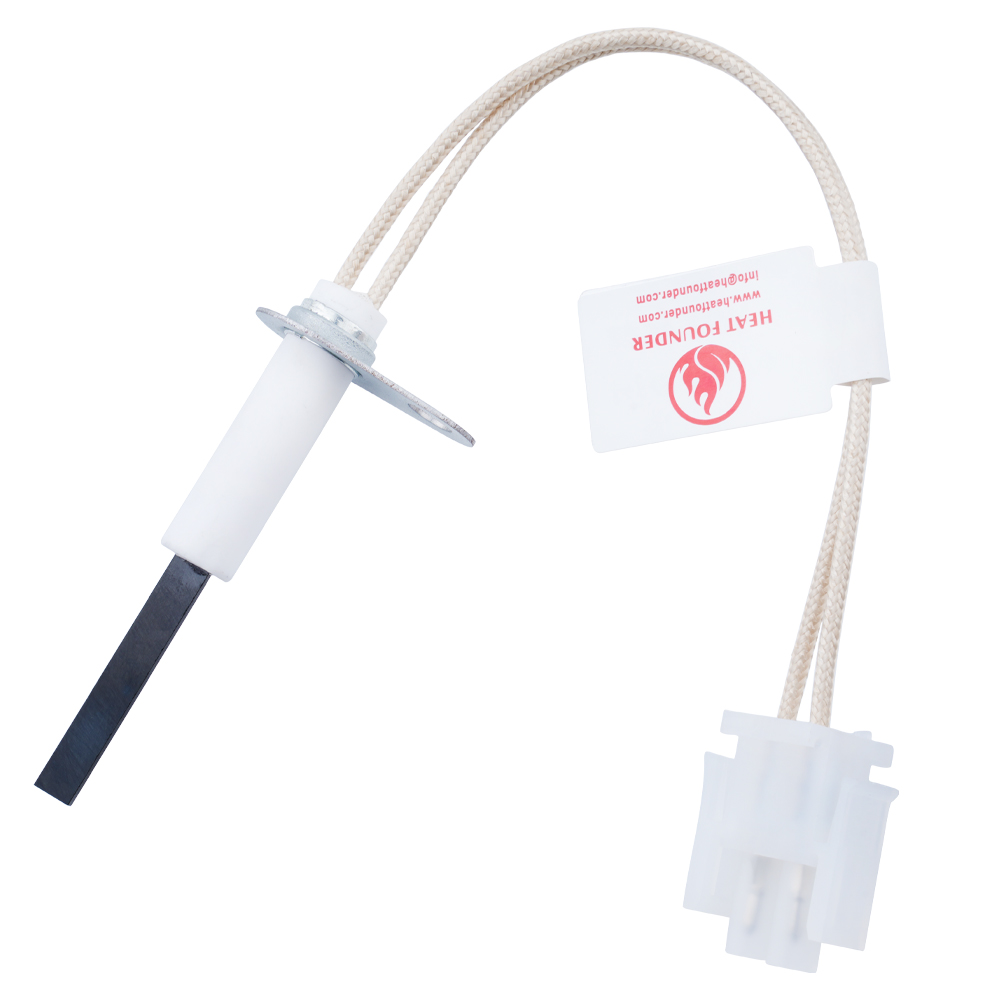

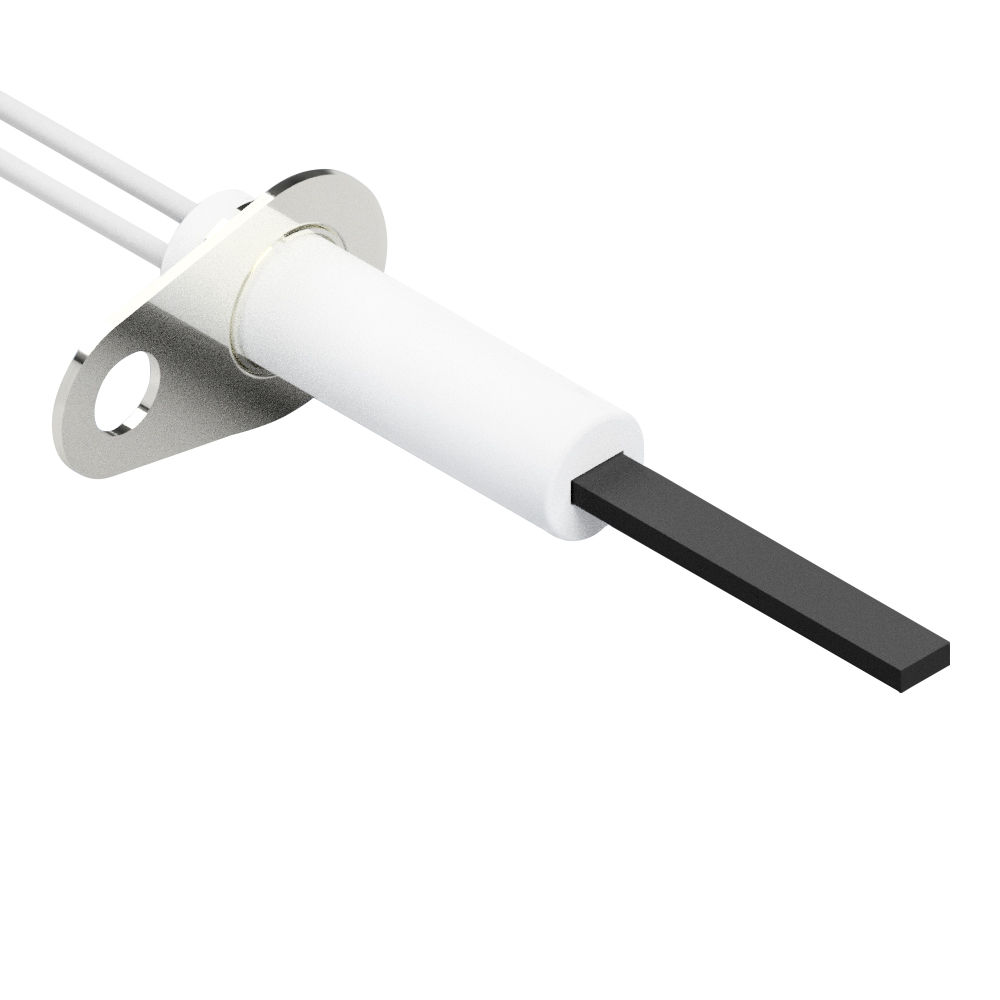

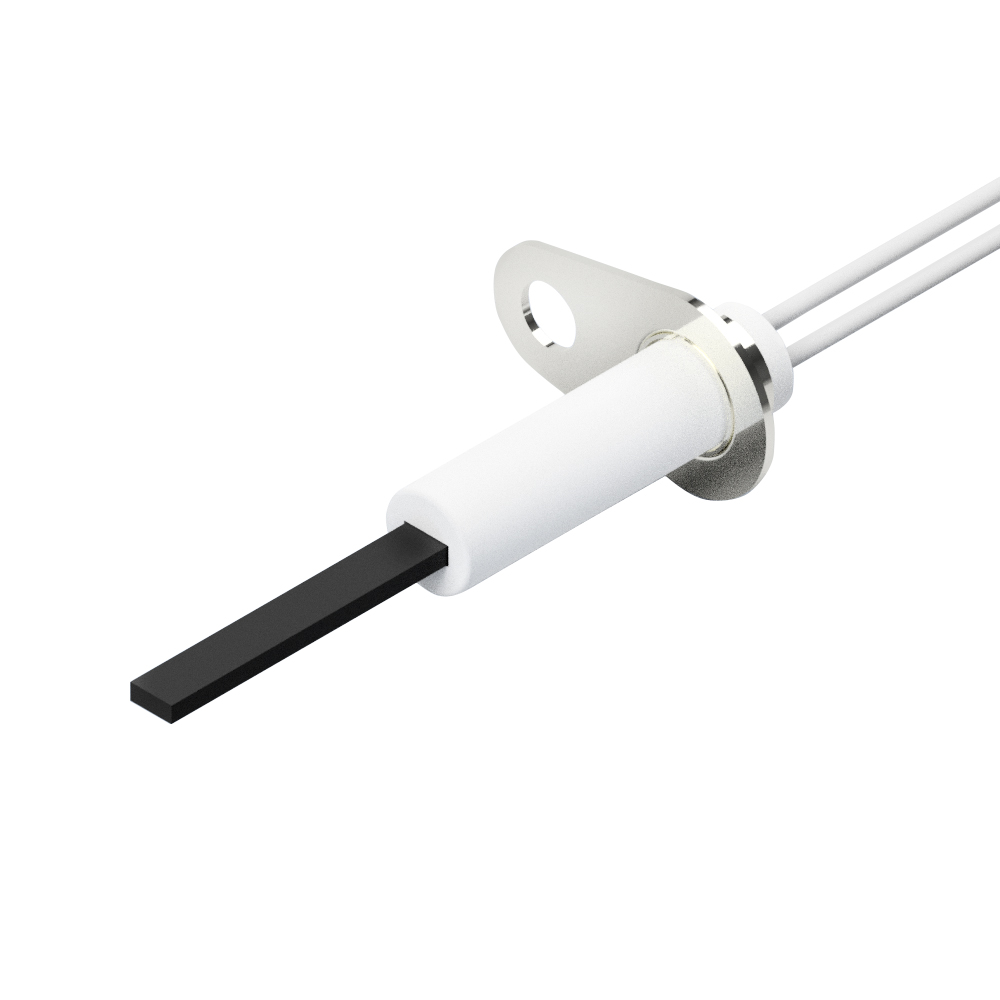

| Name | HF0004574 Si3N4 Heater For SOFC Hydrogen Energy | |
| Model | HF0004574 Up to 1200-1350℃ | |
| Material | Silicon Nitride (Si3N4) | |
| Voltage | 225V | |
| Power | 60W | |
| Flange | Ceramic/Stainless Steel/Customized | |
| Temp Range | 1100~1300 °C/2012~2372℉ | |
| Ignition Time | up to 1000°c in 10 seconds | |
| Samples fee | Please contact us for confirmation. | |
| Packing | Carton | |
| Lead time | 5 working days for samples; 12 working days for mass production | |
| QC | Strict quality control under SGS, ISO9001 and Intertek. | |
| Certification | BSCI, ISO9000/1400,BV TUV SGS FSC etc. | |
| Applications For example, natural gas stoves and heating equipment: gas boilers, natural gas, liquefied petroleum gas Gas furnace,burner,kiln Gas or hydrogen water heater,boiler or other heating equipment SOFC,PEFC Fuel Cell MCHP burner and reformer unit Gas reforming to H2 H2 Post gas combustion Laboratory equipment Biomass boiler secondary combustion Hydrogen combsution Flame detection in H2 combustion burner |
||
| ·Rapid heating: Heating faster. up to 1000°c in 10 seconds ·Range of temperature:1100~1300 °C/2012~2372℉ ·Small size / High watt density: High-watt density discharge allow high thermal efficiency. ·Long working life:10 years possible,90,000 hours ·High insulation ·Direct water and kerosene heating ·Vacuum environment ·Oxidation and chemical resistance |
||
